Black annealed Plain end Pipe - HR

Quality : P235TR1 - S235JR

Standard : TS EN 10217-1 - ISO 65 - ASTM A-53 - TS EN 10255

Outer Diameter : 21.3 - 339.7 mm

Wall Thickness : 1.9 mm - 12.7 mm

Length : 3.00 - 18.30 m

Price List : /price-list/yucel-tube

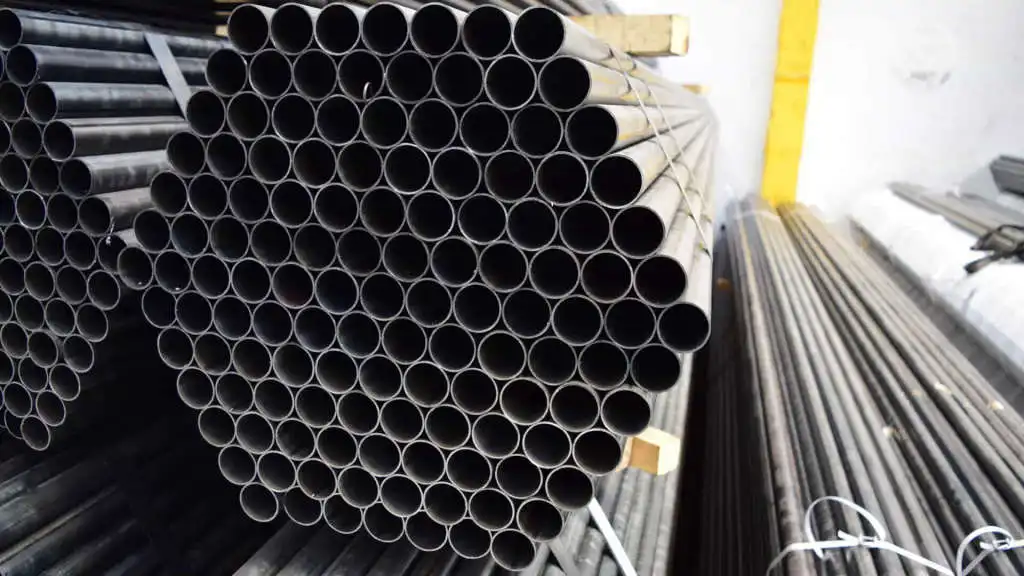

Black Annealed Plain End Pipe

Black Pipe End Plain Annealed What Is It?

Black annealed Plain end pipesinside light; are CE certificated. Each tube under a pressure of 50 bar sealing testand eddy current (E/C) testfrom <url>. The annealing procedure, and the strength of the pipe, which lead to positive changes in properties such as hardness and elasticity, the material micro-scale modified 1050 °c, it is a procedure. Thus, a simple source and long life can be ensured. Water pipes, Black annealedour ovolit the tolerance is narrow. Pipes brought along all axes provides end-to-end overlap perfectly when it is. Resource resource flow and you'll have extra filling a gap does not occur. Fast, comfortable and will be prepared prior to a reliable source. In this way, they are simplified to make welding.

Chemical And Mechanical Properties

Chemical Composition (%)(1)



Standard Provisions

ERDEMİR

C max.

Mn max.

Si max.

P max.

S max.

Cu max.

Standard

Quality

Quality No

EN 10217-1

P235TR1

3285(1)(2)(4)

0,16

1,2

0,35

0.025

0.020

0,3

EN 10217-1

P235TR1

3337 (3)(4)

0,16

1,2

0.040

0.025

0.020

0,12

Description

Cr + Fr + Mo + Ni is the sum of max. % 0.70 should be.

  1. Alasimli is Fr.
  2. Low Silicon coating galvanizedsteel or other suitable
  3. This is full of quality products and therefore are produced as a backwater Al/N minimum is 2:1

Mechanical Properties (2)



Standard Provisions

ERDEMİR

Re N/mm2 (kg/mm2)

Rm(1)

A5 (%) min.

Quality No

1.50<d<16 min.

16<d<40 min.

N/mm2 (kg/mm2)

Standard

Quality





EN 10217-1

P235TR1

3285

235 (24.0)

225 (23.0)

360-500 (36.7-50.9)

23

EN 10217-1

P235TR1

3337(3)

235 (24.0)

225 (23.0)

360-500 (36.7-50.9)

23

Description

  1. Tensile test values ‘transverse’ is applied to the test specimen.
  2. Mechanical values for hot-rolled band is guaranteed.
  3. To a thickness of up to 25 mm are manufactured.

Galvanizing Standards And Tolerances

Tolerances

  • Wall thickness:- 12.5%
  • +10% (varies according to standards.)
  • Weight: ± 10% (a length in the pipe, according to the standard varies.)
  • ± 7.5% (10-ton at a party, according to the standard varies.)
  • Size: ± 50mm (varies in accordance with the standard.)
  • Curvature: 1mm/m

Dimensional and visual controls

  • Sealing Tests / Non-Destructive Tests
  • Electro-Magnetic Testing (Eddy Current Testing)
  • Ultrasonic Test (Weld)
  • Measurement Of Residual Magnetic Field
  • Hydrostatic Test
  • Ultrasonic Testing (Lamination Body Phased Array Test) (According To Demand)

Areas Of Use

  • Water transmission lines
  • In the manufacture of white goods,
  • Plumbing in
  • Heating installation
  • In the construction industry,
  • Building, fire, plumbing systems,
