Coated natural gas installation Pipe - HR

Quality : A25 - L175 - L210 - L245 - X42 - L290

Standard : API 5L PSL 1 - API 5L PSL 2 - ISO 3183 PSL 1 - ISO 3183 PSL 2 - DIN 30670 - UNI 9099

Wall Thickness : 1.65 - 13.0 mm

Length : 5.0 - 14.0 m

Outer Diameter : 21.3 mm - 323.9 mm

Coverable Pipe Length : 6.0 - 12.80 m

Price List : /price-list/toscelik

Polyethylene-Coated Natural Gas Installation Pipe

Polyethylene-Coated Natural Gas Installation Pipe What Is It?

All natural gas pipeswere normalized Miz (tavlanmi is), internal capaksiz corrosion resistance is high. TH-Coated natural gas pipesMiz, DIN 30670:2012-4 are coated according to norms.

Production Standards

½ ”~3” range of natural gas pipesare manufactured in the quality of GrB Miz.

4”~12” range of natural gas pipesX42 Miz - PSL2 quality are produced.

Coating Properties

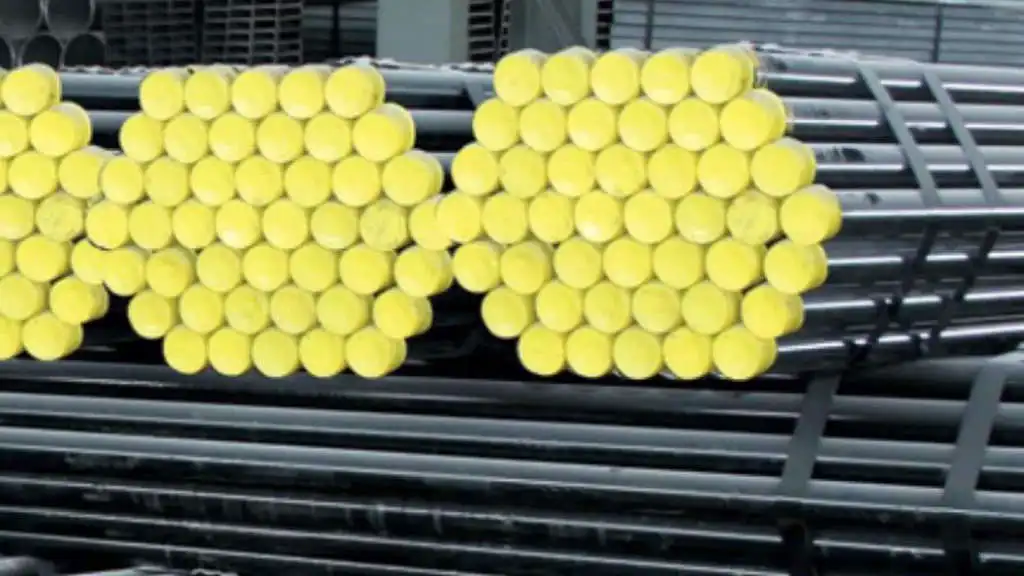

Standard coating color: yellow (coating; black, red and white colors can be made.)
Standard coating material: LDPE (according to the specifications, MDPE or HDPE can be used.)
Supplied as bare pipe 100 mm from the end.
Plastic is attached to a standard yellow color.
Can be plated with 3 layers.
Coating is made by extrusion method.

Polyethylene-Coated Pipes

Coating Properties

Standard coating color: yellow (coating; black, red and white colors can be made.)
Standard coating material: LDPE (according to the specifications, MDPE or HDPE can be used.)
Supplied as bare pipe 100 mm from the end.
Plastic is attached to a standard yellow color.
Can be plated with 3 layers.
Coating is made by extrusion method.

Spiral-Welded Natural Gas Pipes

Production Range

Outer diameter: 508mm - 3.048 mm

Wall thickness: 4.78 mm - 25.4 mm

According to customer demand size 8.0 - 24.50 m between the desired length can be delivered.

Coating Properties

ARO double FBE Coating (AWWA C 213, API 5L7, CSA Z 245-20, NACE RP 0394)
Fusion Bonded Epoxy Coating (AWWA C 213, API 5L7, CSA Z 245-20, NACE RP 0394)
Polyethylene Coating (DIN 30670, TS 5139, NF a 49 - 710, UNI 9099, MOST ISO 21809-1)
Polypropylene coating (din 30678, NF a 49 - 711 EN ISO 21809-1)
Flow Coat Epoxy Coating (API RP 5L2)
Epoxy Coating (AWWA C-210)

Production Standards

API 5L / ISO 3183, MOST 10208, ISO 3183, GOST 20295

Areas Of Use

-Domestic natural gas installation

-Oil pipeline

-Basic Excavations

-Refineries

Weight Ruler

Outer Diameter	Wall Thickness	Pipe Plain End Weight	Hydrostatic Test Pressure (Minimum Bar)
mm	mm	kg/m	L210GA	L235GA	L245GA	L290GA
21,3	2,8	1,28	100	100	100	100
26,9	2,9	1,72	100	100	100	100
33,7	3,4	2,54	100	100	100	100
42,4	3,6	3,44	100	100	100	100
48,3	3,7	4,07	100	100	100	100
60,3	3,9	5,42	163	182	190	207
73	5,2	8,69	180	201	207	207
88,9	5,5	11,31	156	174	182	207
102	5,7	13,48	141	158	165	195
114	6	16,03	132	148	154	183
141	6,6	21,92	147	165	172	203
168	7,1	28,23	133	149	155	184
219	8,2	42,65	118	132	138	163

Nominal Size	Outer Diameter		Wall Thickness		Pipe Plain End Weight		Test Basıncı Grade A	Flat-blade test pressure (min) Grade B	Test pressure (min) 25 Grade A	Flat-blade test pressure (min) Grade x 42
inch	inch	mm	inch	mm	lb/ft	kg/m	100xkPa	100xkPa	100xkPa	100xkPa
3.Ağu	0.675	17,1	0.091	2,3	0,57	0,84	48	48	48	-
1.Şub	0.840	21,3	0.109	2,8	0,85	1,28	48	48	48	-
3.Nis	1.050	26,7	0.113	2,9	1,13	1,7	48	48	48	-
1	1.315	33,4	0.133	3,4	1,68	2,52	48	48	48	-
1	1.315	33,4	0.179	4,5	2,17	3,21	59	59	59	-
1 1/4	1.660	42,2	0.140	3,6	2,27	3,43	83	90	69	-
1 1/4	1.660	42,2	0.191	4,9	3	4,51	124	131	90	-
1 1/2	1.900	48,3	0.145	3,7	2,72	4,07	83	90	69	-
1 1/2	1.900	48,3	0.200	5,1	3,63	5,43	124	131	90	-
2 3/8	2.375	60,3	0.154	3,9	3,66	5,42	161	172	69	207
	2.375	60,3	0.172	4,4	4,05	6,07	172	172	76	207
	2.375	60,3	0.188	4,8	4,4	6,57	172	172	83	207
	2.375	60,3	0.218	5,5	5,03	7,43	172	172	90	207
2 7/8	2.875	73	0.156	4	4,53	6,81	136	158	69	191
	2.875	73	0.172	4,4	4,97	7,44	150	172	69	207
	2.875	73	0.188	4,8	5,4	8,07	163	172	69	207
	2.875	73	0.203	5,2	5,8	8,69	172	172	69	207
	2.875	73	0.216	5,5	6,14	9,16	172	172	76	207
3 1/2	3.500	88,9	0.172	4,4	6,12	9,17	123	143	69	172
	3.500	88,9	0.188	4,8	6,66	9,95	134	156	69	188
	3.500	88,9	0.216	5,5	7,58	11,31	154	172	69	207
	3.500	88,9	0.250	6,4	8,69	13,02	172	172	-	207
4	4.000	101,6	0.172	4,4	7,04	10,55	108	125	69	151
	4.000	101,6	0.188	4,8	7,66	11,46	117	137	83	164
	4.000	101,6	0.226	5,7	9,12	13,48	139	162	83	195
	4.000	101,6	0.250	6,4	10,02	15,02	156	182	-	207
4 1/2	4.500	114,3	0.172	4,4	7,96	11,92	96	111	-	134
	4.500	114,3	0.188	4,8	8,67	12,96	104	121	83	146
	4.500	114,3	0.203	5,2	9,32	13,99	113	132	-	158
	4.500	114,3	0.219	5,6	10,02	15,01	122	142	83	170
	4.500	114,3	0.237	6	10,8	16,02	130	152	83	183
	4.500	114,3	0.250	6,4	11,36	17,03	139	162	-	195
	4.500	114,3	0.281	7,1	12,67	18,77	154	180	-	207
5 9/16	5.563	141,3	0.188	4,8	10,8	16,16	84	98	70	118
	5.563	141,3	0.219	5,6	12,51	18,74	98	115	81	138
	5.563	141,3	0.258	6,6	14,63	21,92	116	135	83	163
	5.563	141,3	0.281	7,1	15,87	23,5	125	145	105	175
	5.563	141,3	0.312	7,9	17,51	25,99	139	162	116	195
6 5/8	6.625	168,3	0.188	4,8	12,94	19,35	71	82	-	124
	6.625	168,3	0.203	5,2	13,94	20,91	77	89	-	134
	6.625	168,3	0.219	5,6	15	22,47	83	96	-	145
	6.625	168,3	0.250	6,4	17,04	25,55	94	110	-	165
	6.625	168,3	0.280	7,1	18,99	28,22	105	122	-	184
	6.625	168,3	0.312	7,9	21,06	31,25	117	136	-	204
8 5/8	8.625	219,1	0.188	4,8	16,96	25,37	54	63	-	95
	8.625	219,1	0.203	5,2	18,28	27,43	59	69	-	103
	8.625	219,1	0.219	5,6	19,68	29,48	63	74	-	111
	8.625	219,1	0.250	6,4	22,38	33,57	73	84	-	127
	8.625	219,1	0.277	7	24,72	36,61	79	92	-	139
	8.625	219,1	0.312	7,9	27,73	41,14	90	104	-	157
	8.625	219,1	0.322	8,2	28,58	42,65	93	108	-	163
	8.625	219,1	0.344	8,7	30,45	45,14	99	115	-	173
	8.625	219,1	0.375	9,5	33,07	49,1	108	125	-	189
