Galvanized Concrete Trapeze

Quality : DX51D+Z - DX52D+Z - DX53D+Z - DX54D+Z - DX56D+Z - S220 GD+Z - S250 GD+Z - S280 GD+Z - S320 GD+Z - S350 GD+Z

Standard : TSE 4559

Form : 54/305

Thickness : 0.70 - 1.50 mm

Width : 915mm

Length : 100 - 1300 mm

Galvanized Concrete Trapeze

What is Galvanized Concrete Trapeze?

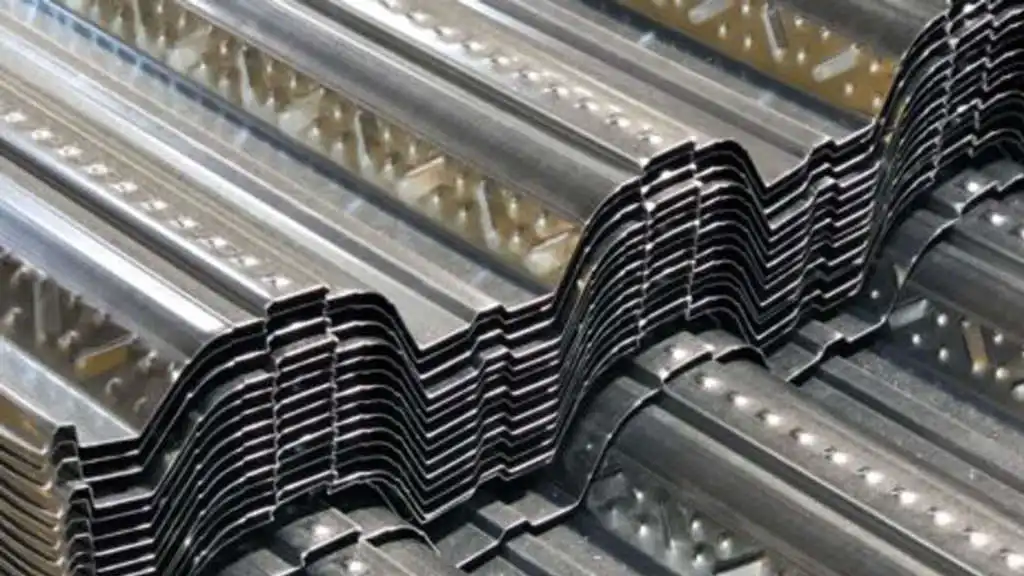

Galvanized rollyours Roll fin the orm machine trapezoidal sheetaspectformedis still.54/305 fin the forestis produced.1200 mm sacdanis produced. useful area915 mm' is. under concreteorderPOZIused as floor panel.mold to concreteworks and eliminates this cost. same thicknessconcrete slabIt is lighter than slabs, has more load bearing and saves concrete.

Advantages

  • It acts as a mold.
  • It creates a secure system.
  • Speeds up building construction time.
  • It reduces the cost of steel and concrete.

Technical Specifications

Hot Dip Galvanized 58/915 Concrete Trapeze Technical Specifications:

Thickness

0,70 – 1,50 mm

Width

915 mm

Boy

100 – 13000 mm

Coating Thickness (total of two surfaces)

50 – 350 gr/m2

Steel Type

Cold Forming Steels (DX51D+Z,
DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z) UnalloyedStructural Steels
(S220 HG+Z, S250 HG+Z, S280 HG+Z, S320 HG+Z, S350 HG+Z)



Hot Dip Painted 58/915 Concrete Trapeze Technical Specifications:

Thickness

0,70 – 1,50 mm

Width

915 mm

Boy

100 – 13000 mm

Coating Thickness (total of two surfaces)

50 – 350 gr/m2

Steel Type

Cold Forming Steels (DX51D+Z, DX52D+Z,
DX53D+Z, DX54D+Z, DX56D+Z) UnalloyedStructural Steels
(S220 HG+Z, S250 HG+Z, S280 HG+Z, S320 HG+Z, S350 HG+Z)

Paint Type

Polyester, Pvdf, plastisol, PVC

Color Option

All RAL

IAS 58/915 Section Specifications:

Wall Thickness t:(mm)

0.7

0.8

0.9

one

1,2

1.5

Area A:(mm2)

840

960

1080

1200

1440

1800

Unit Weight G:(kg/m2)

7.21

8.24

9.27

10.3

12.4

15.4

Moment of Inertia I:(mm2)

551177

629869

708560

787244

944594

1180587

OriginExDistance c:(mm2)

33.48

33.52

33.56

33.6

33.68

33.8

Comfortable. Moments W: (mm2)

16462.7

18790.8

18790.8

23429.9

28046.1

34928.6

Usage Areas

  • Steelkconstruction Ypins,
  • Homes,
  • Weatheralanes
  • Liquid fuelistations
  • IndustrialYin the apibeton alty inin applicationskis used.
