Ara

Galvanized Sheet - GZR

Euro Quality : DX51D+Z - DX52D+Z - DX53D+Z - DX54D+Z - DX56D+Z(1)(3) - DX57D+Z(3)

Erdemir Quality : 1311 – 1312 – 1313 – 1314 - 1315 - 1317 - 1322 - 1325 - 1328 - 1332 - 1335

Standards : EN 10346

Width : 500 - 1250 mm

Wall Thickness : 0.30 -3.00 mm

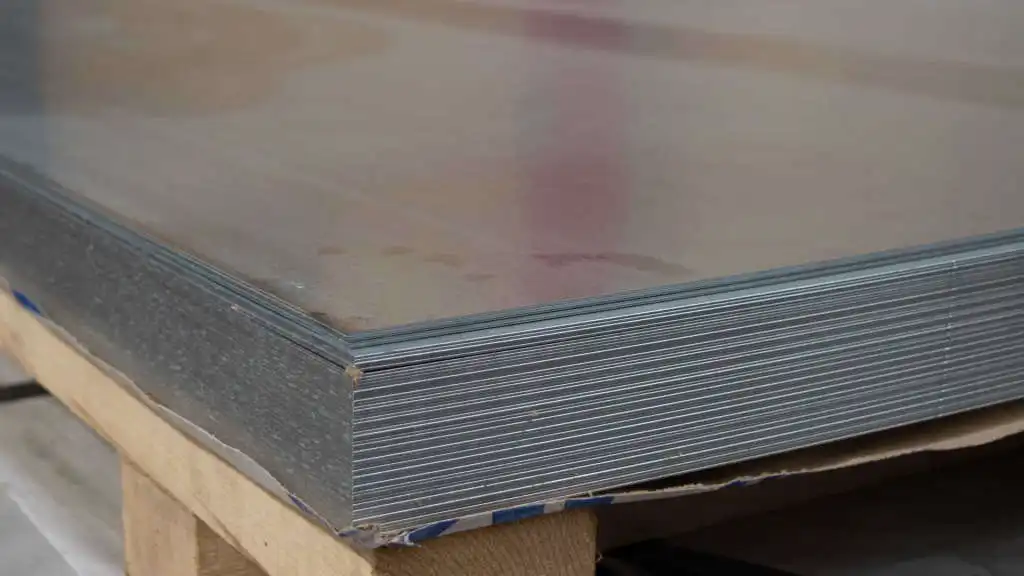

Galvanized Sheet DX 51-1311

What is Galvanized Sheet DX 51-1311?

CRofwith zinc coatinggalvanized sheetTin is obtained by coating tin. from the generation of CR orgalvanizing procedureof theAfter its realization, it is necessary to cut the sheet according to the demand.

Features of Galvanized SheetLong-lasting, Zinc coating does not spill when folded,dIt is suitable for drawing and spinning,kThe event holds solder, can be painted very simply, is fire resistant, economical,it's easyand is resistant to many external factors.

What are the Features of Galvanized Sheet?

Moisture and soil are among the most damaging factors for iron and iron products. Iron and iron products exposed to moisture and wetness shorten the lifespan and lose their properties and resistance within a few years. This causes iron and iron products to lose their functions. Therefore, the sheet clothedgalvanizeso throughgalvanized sheetIt increases the resistance of the products and ensures that they are long-lasting in their full functioning.Galvanized sheetThere are many features among the reasons why it is so preferred.Galvanized sheetDue to the presence of corrosion resistance, it establishes a barrier to the corrosive elements of the metal in its nature. Its easy formatting feature also causes it to expand its usage areas immensely. Feature extra deeppullabilityand bending is the most suitable material for the production of desired parts. It is frequently used because of its perfect surface appearance.  

to the source if knowledgegalvanized sheetAmong the method features, they can be welded by most welding processes. paintabilitythough it's a featuregalvanized sheetproducts can be simply painted if pre-processed correctly. The preliminary procedures mentioned here are called degreasing procedures.

Usage Areas

Galvanized sheet, Due to its high quality and longevity, its usage areas are extremely large and wide. The fact that it can be brought into different forms allows it to be used from different areas. Galvanizedthat sacIt is used for roofing, building faces and interior exterior coatings, side surfaces, roofing by being put into a special form.Sandwich panel used in the task. Besides this situationsheet metal coatingIt is also used in the following sectors.  

-Automotive Industry

-White Goods Industry

-Insulation and Coating Processes

-Ventilation and Air Conditioning Facilities

-Thermosiphon, Stove and Pipe Production

-Production of Water and Fuel Tanks

-Pipe and Profile Production

-Cable Tray and Lighting Fixtures

-Cable Industry

-Hardware and Packaging Industry

-Prefabricated Building Production

-Shed Construction, Silo and Warehouse Construction

-Social Structures

-Shopping malls

-Agricultural Buildings

-Construction Site Buildings

-Military Facilities

-It is a product that has an extremely wide usage area like Hal Facilities.

Usage Areas and Standard Equivalents of Galvanized Products

General Usage Area and Main Features

Standard Equivalent

ERDEMIR Quality No.

Standard

Quality

Low carbon suitable for cold forming

IN 10346:2015

DX51D+Z

1311

IN 10346:2015

DX52D+Z

1312

IN 10346:2015

DX53D+Z

1313

IN 10346:2015

DX53D+Z

1303

IN 10346:2015

DX54D+Z

1314

IN 10346:2015

DX56D+Z

1315

IN 10346:2015

DX57D+Z

1317

ASTM A653/A653M-18

CS TYPE B

1306

WSD-M1 A333

A2 DC05

311

Galvanized steels "coated with zinc"

11-04-013

CAR

312

WSS-M1 A365

A13

320

WSS-M1 A365

A14

321

WSD-M1 A333

A3 DC06

323

11-04-013

XES

324

B53 3106

XSG

325

52806/9.52873

FEP04-ZNT/F/2S

326

52806/9.52873

FEP05-ZNT/F/2S

327

52806/9.52873

FEP04/FEP05-ZNT/F/2S

328

IN 10346:2015

HX180BD+Z

1118

IN 10346:2015

HX220BD+Z

1122

IN 10346:2015

HX260BD+Z

1126

Furnace-hardened steels “galvanized” by coating with zinc

IN 10346:2015

HX300BD+Z

1130

52814/9.52873

FEE 220 BH-ZNT/F/2S

380

WSS-M1 A367

A22

381

WSS-M1 A367

A23

382

WSS-M1 A341

A5

383

11-04-013

XE260BH

384

IN 10346:2015

HX180YD+Z

1518

IN 10346:2015

HX220YD+Z

1522

“Galvanized” IF steel with zinc coating

52814

FEE180IF

385

52814

FEE210IF

386

50002

IF280Y380T

387

Galvanized steels with high yield strength and suitable for cold forming process by continuous hot dipping method

11-04-002/L

XE280P

388

IN 10346:2015

S220GD+Z

1322

IN 10346:2015

S250GD+Z

1325

"Galvanized" structural steels coated with zinc

IN 10346:2015

S280GD+Z

1328

IN 10346:2015

S320GD+Z

1332

IN 10346:2015

S350GD+Z

1335

WSB-M1 A215-F1

Gr. 250

355

Chemical Composition (%)

Standard Equivalent

ERDEMIR

Quality No.

C max.

And

max.

Mn

max.

P max.

S max.

Of

max.

Standard

Quality

IN 10346

DX51D+Z

1311

0.18

0.50

1.20

0.12

0.045

0.30

IN 10346

DX52D+Z

1312

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

DX53D+Z

1313

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

DX53D+Z

1303

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

DX54D+Z

1314

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

IN 10346

DX56D+Z

DX57D+Z

1315

1317

0.12

0.12

0.50

0.50

0.60

0.60

0.10

0.10

0.045

0.045

0.30

0.30
