Honeycomb Beams
Quality : EN 10163
Height : 120 - 600 mm
Width : 42 - 155 mm
Honeycomb Beams

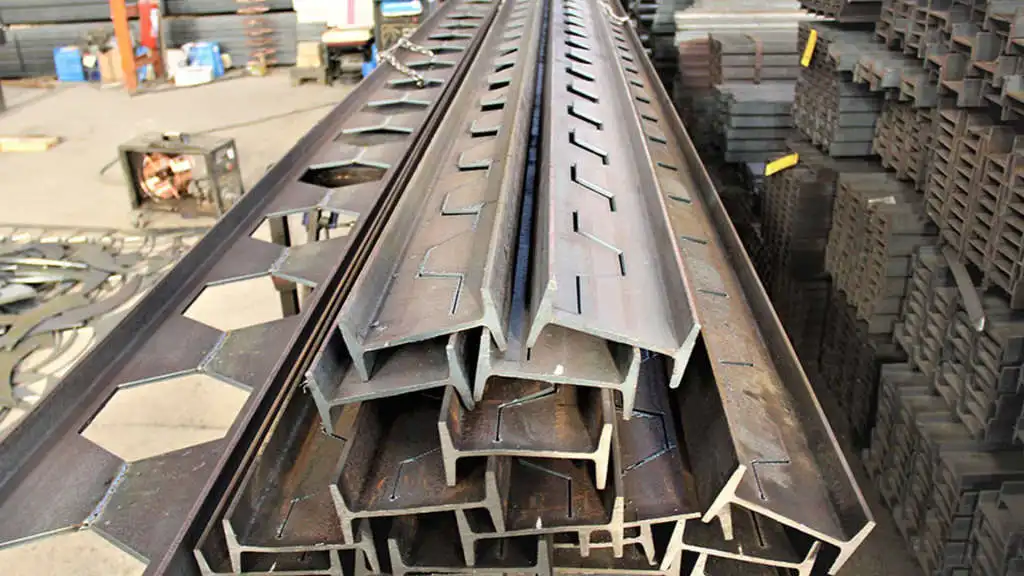

What are Honeycomb Beams?
honeycomb beams hot rolledH and I type profilesalong their trunkszig-zagproduced by sliding the two parts obtained by cutting asbeamare.
It also has a deeper crenellation resulting in octagonal openings in its body.beamgiving square orrectangular plateIt is also possible to weld them between the cut halves.
Advantages
- They increase vertical bending stiffness.
- Although it is the same weight compared to normal section beams, the section inertia is greater.
- It has many uses, from short spans to long spans.
- In multi-storey buildingsin beam bodiesPlumbing works become easier as the gaps allow pipe passage.
- concrete slab includingthe total laying depth is reduced.
- Thanks to their elegant appearance, they can be preferred in cases where the appearance of beams is inevitable.
- GovThey have different structural behaviors compared to solid beams due to the large gaps in the hole.
- Attention should be paid to its use in conditions where point loads are evident.
- Stress accumulations at the corners of voids can be used in places where dynamic loads are present. attention is necessary. In this case, the use of circular mesh honeycomb beams can be evaluated.
Weight Chart
Standard NPI | Honeycomb Beam | Height | Width | Kg/m |
80 | 120 | 120 | 42 | 5.94 |
one hundred | 140 | 140 | 50 | 8.34 |
120 | 180 | 180 | 58 | 11.10 |
140 | 200 | 200 | 66 | 14.30 |
160 | 245 | 245 | 74 | 17.90 |
180 | 265 | 265 | 82 | 21.90 |
200 | 305 | 305 | 90 | 26.20 |
220 | 325 | 325 | 98 | 31.10 |
240 | 320 | 320 | 106 | 36.00 |
240 | 360 | 360 | 106 | 36.00 |
260 | 360 | 360 | 113 | 41.60 |
260 | 390 | 390 | 113 | 41.60 |
280 | 400 | 400 | 119 | 47.60 |
280 | 420 | 420 | 119 | 47.60 |
300 | 420 | 420 | 125 | 53.80 |
300 | 450 | 450 | 125 | 53.80 |
320 | 460 | 460 | 131 | 60.70 |
320 | 480 | 480 | 131 | 60.70 |
340 | 500 | 500 | 137 | 67.70 |
340 | 510 | 510 | 137 | 67.70 |
360 | 500 | 500 | 143 | 75.50 |
360 | 540 | 540 | 143 | 75.50 |
380 | 540 | 540 | 149 | 83.60 |
380 | 570 | 570 | 149 | 83.60 |
400 | 580 | 580 | 155 | 92,00 |
400 | 600 | 600 | 155 | 92,00 |
Section | NORMAL SECTION FEATURES | Honeycomb BEAM SECTION FEATURES | ||||||||||||||
G kg/m | h mm | b mm | tin mm | tf mm | r mm | A cm2 | IY cm4 | InY cm3 | H mm | Aa cm2 | Ab cm2 | Iof cm4 | Inof cm3 | IMr cm4 | InMr cm3 | |
CALL 100 | 8.1 | one hundred | 55 | 4.1 | 5.7 | 7 | 10.3 | 171 | 34 | 150 | 12.4 | 8.3 | 437 | 58 | 403 | 54 |
CALL 120 | 10.4 | 120 | 64 | 4.4 | 6.3 | 7 | 13.2 | 318 | 53 | 180 | 15.9 | 10.6 | 809 | 90 | 746 | 83 |
CALL 140 | 12.9 | 140 | 73 | 4.7 | 6.9 | 7 | 16.4 | 541 | 77 | 210 | 19.7 | 13.1 | 1374 | 131 | 1267 | 121 |
CALL 160 | 15.8 | 160 | 82 | 5.0 | 7.4 | 9 | 20.1 | 869 | 109 | 240 | 24.1 | 16.1 | 2203 | 184 | 2032 | 169 |
CALL 180 | 18.8 | 180 | 91 | 5.3 | 8.0 | 9 | 24.0 | 1317 | 146 | 270 | 28.7 | 19.2 | 3332 | 247 | 3074 | 228 |
CALL 200 | 22,4 | 200 | one hundred | 5.6 | 8.5 | 12 | 28.5 | 1943 | 194 | 300 | 34.1 | 22.9 | 4908 | 327 | 4535 | 302 |
CALL 220 | 26.2 | 220 | 110 | 5.9 | 9.2 | 12 | 33.4 | 2772 | 252 | 330 | 39.9 | 26.9 | 6986 | 423 | 6463 | 392 |
CALL 240 | 30.7 | 240 | 120 | 6.2 | 9.8 | 15 | 39.1 | 3892 | 324 | 360 | 46.6 | 31.7 | 9789 | 544 | 9075 | 504 |
CALL 270 | 36.1 | 270 | 135 | 6.6 | 10.2 | 15 | 46.0 | 5790 | 429 | 405 | 54.9 | 37.0 | 14552 | 719 | 13470 | 665 |
CALL 300 | 42.2 | 300 | 150 | 7.1 | 10.7 | 15 | 53.8 | 8356 | 557 | 450 | 64.5 | 43.2 | 21008 | 934 | 19411 | 863 |
CALL 330 | 49.1 | 330 | 160 | 7.5 | 11.5 | 18 | 62.6 | 11767 | 713 | 495 | 75.0 | 50.2 | 29580 | 1195 | 27334 | 1104 |
CALL 360 | 57.1 | 360 | 170 | 8.0 | 12.7 | 18 | 72.7 | 16266 | 904 | 540 | 87.1 | 58.3 | 40890 | 1514 | 37780 | 1399 |
CALL 400 | 66.3 | 400 | 180 | 8.6 | 13.5 | 21 | 84.5 | 23128 | 1156 | 600 | 101.7 | 67.3 | 58291 | 1943 | 53704 | 1790 |
CALL 450 | 77.6 | 450 | 190 | 9.4 | 14.6 | 21 | 98.8 | 33743 | 1500 | 675 | 120.0 | 77.7 | 85433 | 2531 | 78294 | 2320 |
CALL 500 | 90.7 | 500 | 200 | 10.2 | 16.0 | 21 | 115.5 | 48199 | 1928 | 750 | 141.0 | 90.0 | 122430 | 3265 | 111805 | 2981 |
IPE550 | 106.0 | 550 | 210 | 11.1 | 17.2 | 24 | 134.4 | 67116 | 2441 | 825 | 164.9 | 103.9 | 171096 | 4148 | 155706 | 3775 |
CALL 600 | 122.0 | 600 | 220 | 12.0 | 19.0 | 24 | 156.0 | 92083 | 3069 | 900 | 192.0 | 120.0 | 235252 | 5228 | 213652 | 4748 |
IPE 750 x 147 | 147.0 | 753 | 265 | 13.2 | 17.0 | 17 | 187.5 | 166064 | 4411 | 1130 | 237.2 | 137.8 | 431220 | 7632 | 384255 | 6801 |
Section | NORMAL SECTION FEATURES | Honeycomb K | RISH SECTION FEATURES | |||||||||||||
G kg/m | h mm | b mm | tin mm | tf mm | r mm | A cm2 | IY cm4 | InY cm3 | H mm | Aa cm2 | Ab cm2 | Iof cm4 | Inof cm3 | IMr cm4 | InMr cm3 | |
HE 100 M | 41.8 | 120 | 106 | 12.0 | 20.0 | 12 | 53.2 | 1143 | 190 | 180 | 60.4 | 46.0 | 3058 | 340 | 2885 | 321 |
HE 120 M | 52.1 | 140 | 126 | 12.5 | 21.0 | 12 | 66.4 | 2018 | 288 | 210 | 75.2 | 57.7 | 5321 | 507 | 5035 | 480 |
HE 140 M | 63.2 | 160 | 146 | 13.0 | 22.0 | 12 | 80.6 | 3291 | 411 | 240 | 91.0 | 70.2 | 8586 | 716 | 8143 | 679 |
HE 160 M | 76.2 | 180 | 166 | 14.0 | 23.0 | 15 | 97.1 | 5098 | 566 | 270 | 109.7 | 84.5 | 13220 | 979 | 12539 | 929 |
HE 180 M | 88.9 | 200 | 186 | 14.5 | 24.0 | 15 | 113.3 | 7483 | 748 | 300 | 127.8 | 98.8 | 19270 | 1285 | 18303 | 1220 |
HE 200 M | 103.0 | 220 | 206 | 15.0 | 25.0 | 18 | 131.3 | 10642 | 967 | 330 | 147.8 | 114.8 | 27266 | 1652 | 25935 | 1572 |
HE 220 M | 117.0 | 240 | 226 | 15.5 | 26.0 | 18 | 149.4 | 14605 | 1217 | 360 | 168.0 | 130.8 | 37241 | 2069 | 35456 | 1970 |
HE 240 M | 157.0 | 270 | 248 | 18.0 | 32.0 | 21 | 199.6 | 24289 | 1799 | 405 | 223.9 | 175.3 | 62331 | 3078 | 59378 | 2932 |
HE 260 M | 172.0 | 290 | 268 | 18.0 | 32.5 | 24 | 219.6 | 31307 | 2159 | 435 | 245.7 | 193.5 | 79902 | 3674 | 76243 | 3505 |
HE 280 M | 189.0 | 310 | 288 | 18.5 | 33.0 | 24 | 240.2 | 39547 | 2551 | 465 | 268.9 | 211.5 | 100514 | 4323 | 95921 | 4126 |
HE 300 M | 238.0 | 340 | 310 | 21.0 | 39.0 | 27 | 303.1 | 59201 | 3482 | 510 | 338.8 | 267.4 | 151279 | 5932 | 144400 | 5663 |
HE 320 M | 245.0 | 359 | 309 | 21.0 | 40.0 | 27 | 312.0 | 68135 | 3796 | 539 | 349.7 | 274.3 | 173891 | 6458 | 165794 | 6158 |
HE 340 M | 248.0 | 377 | 309 | 21.0 | 40.0 | 27 | 315.8 | 76372 | 4052 | 566 | 355.4 | 276.2 | 194525 | 6880 | 185148 | 6548 |
HE 360 M | 250.0 | 395 | 308 | 21.0 | 40.0 | 27 | 318.8 | 84867 | 4297 | 593 | 360.3 | 277.3 | 215843 | 7286 | 205058 | 6922 |
HE 400 M | 256.0 | 432 | 307 | 21.0 | 40.0 | 27 | 325.8 | 104119 | 4820 | 648 | 371.2 | 280.4 | 264207 | 8155 | 250098 | 7719 |
HE 450 M | 263.0 | 478 | 307 | 21.0 | 40.0 | 27 | 335.4 | 131484 | 5501 | 717 | 385.6 | 285.2 | 333086 | 9291 | 313973 | 8758 |
HE 500 M | 270.0 | 524 | 306 | 21.0 | 40.0 | 27 | 344.3 | 161929 | 6180 | 786 | 399.3 | 289.3 | 410031 | 10433 | 384852 | 9793 |
HE 550 M | 278.0 | 572 | 306 | 21.0 | 40.0 | 27 | 354.4 | 197984 | 6923 | 858 | 414.5 | 294.3 | 501419 | 11688 | 468668 | 10925 |
HE 600 M | 285.0 | 620 | 305 | 21.0 | 40.0 | 27 | 363.7 | 237447 | 7660 | 930 | 428.8 | 298.6 | 601964 | 12945 | 560257 | 12049 |
HE 650 M | 293.0 | 668 | 305 | 21.0 | 40.0 | 27 | 373.7 | 281667 | 8433 | 1002 | 443.8 | 303.6 | 714962 | 14271 | 662799 | 13230 |
HE 700 M | 301.0 | 716 | 304 | 21.0 | 40.0 | 27 | 383.0 | 329278 | 9198 | 1074 | 458.2 | 307.8 | 837326 | 15593 | 773090 | 14396 |
HE 800 M | 317.0 | 814 | 303 | 21.0 | 40.0 | 30 | 404.3 | 442598 | 10875 | 1221 | 489.8 | 318.8 | 1130061 | 18510 | 1035674 | 16964 |
HE 900 M | 333.0 | 910 | 302 | 21.0 | 40.0 | 30 | 423.6 | 570434 | 12537 | 1365 | 519.2 | 328.1 | 1463271 | 21440 | 1331396 | 19508 |
HE 1000 M | 349.0 | 1008 | 302 | 21.0 | 40.0 | 30 | 444.2 | 722299 | 14331 | 1512 | 550.0 | 338.4 | 1861816 | 24627 | 1682583 | 22256 |
Kesit | NORMAL SECTION FEATURES | Honeycomb K RISH SECTION FEATURES | Honeycomb BEAM SECTION FEATURES | |||||||||||||
G kg/m | h mm | b mm | tw mm | tf mm | r mm | A cm2 | Iy cm4 | Wy cm3 | H mm | Aa cm2 | Ab cm2 | Iya cm4 | Wya cm3 | Iyb cm4 | Wyb cm3 | |
HE 100 B | 20,4 | 100 | 100 | 6,0 | 10,0 | 12 | 26,0 | 450 | 90 | 150 | 29,0 | 23,0 | 1140 | 152 | 1090 | 145 |
HE 120 B | 26,7 | 120 | 120 | 6,5 | 11,0 | 12 | 34,0 | 864 | 144 | 180 | 37,9 | 30,1 | 2173 | 241 | 2080 | 231 |
HE 140 B | 33,7 | 140 | 140 | 7,0 | 12,0 | 12 | 43,0 | 1509 | 216 | 210 | 47,9 | 38,1 | 3773 | 359 | 3613 | 344 |
HE 160 B | 42,6 | 160 | 160 | 8,0 | 13,0 | 15 | 54,3 | 2492 | 311 | 240 | 60,7 | 47,9 | 6226 | 519 | 5953 | 496 |
HE 180 B | 51,2 | 180 | 180 | 8,5 | 14,0 | 15 | 65,3 | 3831 | 426 | 270 | 72,9 | 57,6 | 9537 | 706 | 9124 | 676 |
HE 200 B | 61,3 | 200 | 200 | 9,0 | 15,0 | 18 | 78,1 | 5696 | 570 | 300 | 87,1 | 69,1 | 14149 | 943 | 13549 | 903 |
HE 220 B | 71,5 | 220 | 220 | 9,5 | 16,0 | 18 | 91,0 | 8091 | 736 | 330 | 101,5 | 80,6 | 20048 | 1215 | 19205 | 1164 |
HE 240 B | 83,2 | 240 | 240 | 10,0 | 17,0 | 21 | 106,0 | 11259 | 938 | 360 | 118,0 | 94,0 | 27857 | 1548 | 26705 | 1484 |
HE 260 B | 93,0 | 260 | 260 | 10,0 | 17,5 | 24 | 118,4 | 14919 | 1148 | 390 | 131,4 | 105,4 | 36785 | 1886 | 35320 | 1811 |
HE 280 B | 103,0 | 280 | 280 | 10,5 | 18,0 | 24 | 131,4 | 19270 | 1376 | 420 | 146,1 | 116,7 | 47429 | 2259 | 45508 | 2167 |
HE 300 B | 117,0 | 300 | 300 | 11,0 | 19,0 | 27 | 149,1 | 25166 | 1678 | 450 | 165,6 | 132,6 | 61891 | 2751 | 59416 | 2641 |
HE 320 B | 127,0 | 320 | 300 | 11,5 | 20,5 | 27 | 161,3 | 30824 | 1926 | 480 | 179,7 | 142,9 | 75930 | 3164 | 72790 | 3033 |
HE 340 B | 134,0 | 340 | 300 | 12,0 | 21,5 | 27 | 170,9 | 36656 | 2156 | 510 | 191,3 | 150,5 | 90433 | 3546 | 86502 | 3392 |
HE 360 B | 142,0 | 360 | 300 | 12,5 | 22,5 | 27 | 180,6 | 43193 | 2400 | 540 | 203,1 | 158,1 | 106726 | 3953 | 101866 | 3773 |
HE 400 B | 155,0 | 400 | 300 | 13,5 | 24,0 | 27 | 197,8 | 57680 | 2884 | 600 | 224,8 | 170,8 | 142993 | 4766 | 135793 | 4526 |
HE 450 B | 171,0 | 450 | 300 | 14,0 | 26,0 | 27 | 218,0 | 79888 | 3551 | 675 | 249,5 | 186,5 | 198408 | 5879 | 187776 | 5564 |
HE 500 B | 187,0 | 500 | 300 | 14,5 | 28,0 | 27 | 238,6 | 107176 | 4287 | 750 | 274,9 | 202,4 | 266715 | 7112 | 251611 | 6710 |
HE 550 B | 199,0 | 550 | 300 | 15,0 | 29,0 | 27 | 254,1 | 136691 | 4971 | 825 | 295,4 | 212,9 | 341065 | 8268 | 320268 | 7764 |
HE 600 B | 212,0 | 600 | 300 | 15,5 | 30,0 | 27 | 270,0 | 171041 | 5701 | 900 | 316,5 | 223,5 | 428023 | 9512 | 400123 | 8892 |
HE 650 B | 225,0 | 650 | 300 | 16,0 | 31,0 | 27 | 286,3 | 210616 | 6480 | 975 | 338,3 | 234,3 | 528700 | 10845 | 492084 | 10094 |
HE 700 B | 241,0 | 700 | 300 | 17,0 | 32,0 | 27 | 306,4 | 256888 | 7340 | 1050 | 365,9 | 246,9 | 648240 | 12347 | 599648 | 11422 |
HE 800 B | 262,0 | 800 | 300 | 17,5 | 33,0 | 30 | 334,2 | 359083 | 8977 | 1200 | 404,2 | 264,2 | 911235 | 15187 | 836569 | 13943 |
HE 900 B | 291,0 | 900 | 300 | 18,5 | 35,0 | 30 | 371,3 | 494065 | 10979 | 1350 | 454,6 | 288,1 | 1262356 | 18702 | 1149968 | 17037 |
HE 1000 B | 314,0 | 1000 | 300 | 19,0 | 36,0 | 30 | 400,0 | 644748 | 12895 | 1500 | 495,0 | 305,0 | 1657324 | 22098 | 1498991 | 19987 |
Kesit | NORMAL SECTION FEATURES | Honeycomb BEAM SECTION FEATURES | ||||||||||||||
G kg/m | h mm | b mm | tw mm | tf mm | r mm | A cm2 | Iy cm4 | Wy cm3 | H mm | Aa cm2 | Ab cm2 | Iya cm4 | Wya cm3 | Iyb cm4 | Wyb cm3 | |
HE 100 A | 16,7 | 96 | 100 | 5,0 | 8,0 | 12 | 21,2 | 349 | 73 | 144 | 23,6 | 18,8 | 875 | 121 | 838 | 116 |
HE 120 A | 19,9 | 114 | 120 | 5,0 | 8,0 | 12 | 25,3 | 606 | 106 | 171 | 28,2 | 22,5 | 1501 | 176 | 1439 | 168 |
HE 140 A | 24,7 | 133 | 140 | 5,5 | 8,5 | 12 | 31,4 | 1033 | 155 | 200 | 35,1 | 27,8 | 2562 | 256 | 2454 | 245 |
HE 160 A | 30,4 | 152 | 160 | 6,0 | 9,0 | 15 | 38,8 | 1673 | 220 | 228 | 43,3 | 34,2 | 4118 | 361 | 3942 | 346 |
HE 180 A | 35,5 | 171 | 180 | 6,0 | 9,5 | 15 | 45,3 | 2510 | 294 | 257 | 50,4 | 40,1 | 6173 | 480 | 5923 | 461 |
HE 200 A | 42,3 | 190 | 200 | 6,5 | 10,0 | 18 | 53,8 | 3692 | 389 | 285 | 60,0 | 47,7 | 9033 | 634 | 8662 | 608 |
HE 220 A | 50,5 | 210 | 220 | 7,0 | 11,0 | 18 | 64,3 | 5410 | 515 | 315 | 71,7 | 57,0 | 13219 | 839 | 12679 | 805 |
HE 240 A | 60,3 | 230 | 240 | 7,5 | 12,0 | 21 | 76,8 | 7763 | 675 | 345 | 85,5 | 68,2 | 18962 | 1099 | 18201 | 1055 |
HE 260 A | 68,2 | 250 | 260 | 7,5 | 12,5 | 24 | 86,8 | 10455 | 836 | 375 | 96,2 | 77,4 | 25466 | 1358 | 24489 | 1306 |
HE 280 A | 76,4 | 270 | 280 | 8,0 | 13,0 | 24 | 97,3 | 13673 | 1013 | 405 | 108,1 | 86,5 | 33284 | 1644 | 31972 | 1579 |
HE 300 A | 88,3 | 290 | 300 | 8,5 | 14,0 | 27 | 112,5 | 18263 | 1260 | 435 | 124,8 | 100,2 | 44452 | 2044 | 42724 | 1964 |
HE 320 A | 97,6 | 310 | 300 | 9,0 | 15,5 | 27 | 124,4 | 22929 | 1479 | 465 | 138,4 | 110,5 | 55913 | 2405 | 53679 | 2309 |
HE 340 A | 105,0 | 330 | 300 | 9,5 | 16,5 | 27 | 133,5 | 27693 | 1678 | 495 | 149,2 | 117,8 | 67666 | 2734 | 64821 | 2619 |
HE 360 A | 112,0 | 350 | 300 | 10,0 | 17,5 | 27 | 142,8 | 33090 | 1891 | 525 | 160,3 | 125,3 | 81015 | 3086 | 77442 | 2950 |
HE 400 A | 125,0 | 390 | 300 | 11,0 | 19,0 | 27 | 159,0 | 45069 | 2311 | 585 | 180,5 | 137,6 | 110817 | 3789 | 105379 | 3603 |
HE 450 A | 140,0 | 440 | 300 | 11,5 | 21,0 | 27 | 178,0 | 63722 | 2896 | 660 | 203,3 | 152,7 | 157032 | 4759 | 148869 | 4511 |
HE 500 A | 155,0 | 490 | 300 | 12,0 | 23,0 | 27 | 197,5 | 86975 | 3550 | 735 | 226,9 | 168,1 | 214835 | 5846 | 203070 | 5526 |
HE 550 A | 166,0 | 540 | 300 | 12,5 | 24,0 | 27 | 211,8 | 111932 | 4146 | 810 | 245,6 | 178,1 | 277364 | 6849 | 260962 | 6444 |
HE 600 A | 178,0 | 590 | 300 | 13,0 | 25,0 | 27 | 226,5 | 141208 | 4787 | 885 | 264,9 | 188,2 | 351094 | 7934 | 328845 | 7432 |
HE 650 A | 190,0 | 640 | 300 | 13,5 | 26,0 | 27 | 241,6 | 175178 | 5474 | 960 | 284,8 | 198,4 | 437085 | 9106 | 407594 | 8492 |
HE 700 A | 204,0 | 690 | 300 | 14,5 | 27,0 | 27 | 260,5 | 215301 | 6241 | 1035 | 310,5 | 210,5 | 540369 | 10442 | 500674 | 9675 |
HE 800 A | 224,0 | 790 | 300 | 15,0 | 28,0 | 30 | 285,8 | 303442 | 7682 | 1185 | 345,1 | 226,6 | 766266 | 12933 | 704636 | 11893 |
HE 900 A | 252,0 | 890 | 300 | 16,0 | 30,0 | 30 | 320,5 | 422075 | 9485 | 1335 | 391,7 | 249,3 | 1073596 | 16084 | 979600 | 14676 |
HE 1000 A | 272,0 | 990 | 300 | 16,5 | 31,0 | 30 | 346,8 | 553846 | 11189 | 1485 | 428,5 | 265,1 | 1417794 | 19095 | 1284378 | 17298 |
