Square Iron

Euro Quality : S235JR - S275JR - S355JR

Erdemir Quality : 5437 - 3244 -3252

Standard : EN 10025-2

Size : 5x5- 250x250 mm

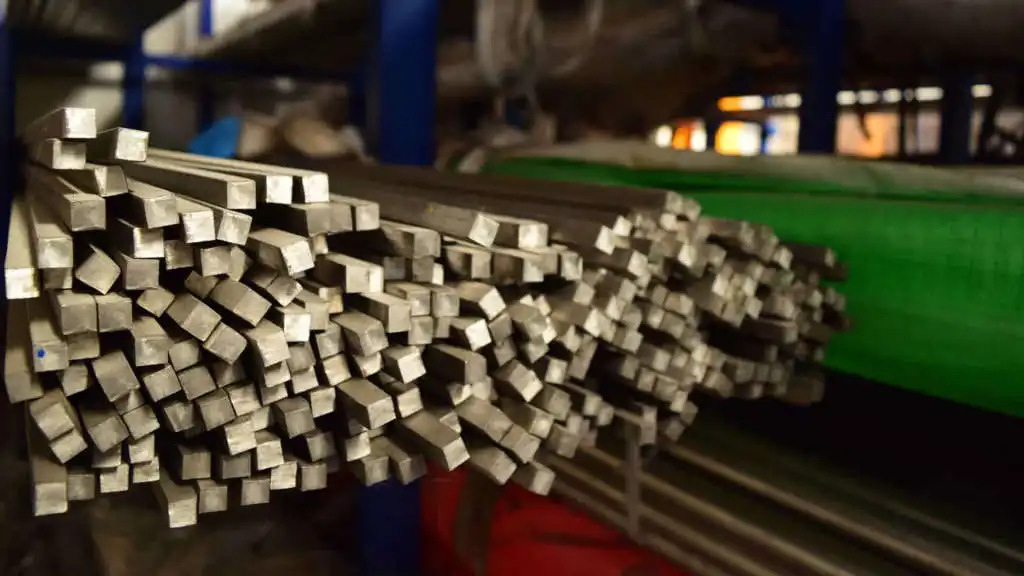

Square Iron

Square IronWhy?

Square filled irons, hot rollingproduced using the technique. Although the existing corners of these products are equal to each other,highdurabilityhas the feature. At the same time, according to sectoral usage purposescold drawingcan also be produced using the technique. These rolled products, which have a high level of weight-bearing power, stand out with their high corrosion resistance. The reason why it is frequently preferred in various sectors is due to its durable structure along with these features.square filled ironFor those who are wondering what it is, we also comprehensively discuss what it does. Widely used in manufacturing as well as general assembly proceduressquare filled ironcan be produced from all kinds of materials. However, it contains various features.

Square filled ironsIn addition to its durability, most of them have superior qualities. One of its most distinctive features is that it can simply take form. In this context, it is very important in terms of welding, cutting, shaping and processing.simplicityoffers. While we operate sensitively with the focus of routine controls during the delivery phase, we provide a privileged experience with our expert team.

Usage Areas

Square filled irons, within the scope of tensile strengthsThey have a stainless structure.. Therefore, it is used in many different sectors. One of the most preferred areas with its maximum resistance power is undoubtedly the construction sector. On the supports of various structuressquare filled ironsis used. Therefore, construction structures gain a form that is highly resistant to outdoor conditions and possible natural disasters.

Square filled ironsOne of the most widely used industries isscaffolding constructionsis. functionality and superiorcorrosionIt plays an important role in the construction of solid structures with its resistance. These products, which have a very high weight-bearing capacity, show a superior performance when used in concrete foundations. It is also preferred in the construction of windows and doors. The reason why it is used especially in areas such as railings is due to its superior strength.

Produced in stainless formsquare filled ironsWith its robustness, it is possible to use it in all construction areas, including crane construction. These parts, which are described as rolled products, are preferred in the production of most ornaments. needed during assembly and productionsquare filled ironYou can access them within the scope of our company's high quality. Developed in reasonable weights and dimensions for your project, these products appeal to different areas of use with their versatile functionality and provide maximum functionality.

Quality

S235JR 5437 QUALITY MECHANICAL PROPERTIES

Mechanical Properties

Standard Equivalent

ERDEMIR

Quality No.

Rand(min) N/mm²( kg/mm²) d(thickness, mm)

Rm^(one)

N/mm²( kg/mm²) d(thickness, mm)

A (%) min.

d(thickness, mm)

Coup(3) (Longitudinally)

A80

<16

>16

<40

>40

<63

>63

<80

>80

<100

<1.5

>1.5

<2.5

>2.5

<40

>40

<63

>63

<100

hot.

°C

KVc

J(min.)

Standard

Quality'⁸¹

IN 10025-2

S235JR+AR CTB

5437

235 (24.0)

225 (23.0)

215

(21.9)

215 (21.9)

215

(21.9)

360-510 (36.7-52.0)

+20

272)

S275JR 3244 CHEMICAL COMPOSITION Standard: EN 10025-2:2019

Chemical Composition (%)

Standard Equivalent

ERDEMIR

C d(thickness, mm)

And

With

N(one)

CE(IIW) ⁽⁴⁾max. (%)

Quality No.

<16

16<d<40

40<d<100

d (mm)

Standard

Quality

max.

<30

30<d<40

40<d<100

IN 10025-2

S275JR+AR

3244(one)

0.21

0.22

1:50

0.035

0.55

0.012

0.40

0.42

For S275 and S355 gradesmax. Carbonequivalent (CEV) for %Si ≤ 0.040.02%, for %Si ≤ 0.250.01%can be increased.

S355JR 3252 CHEMICAL COMPOSITION Standard: EN 10025-2:2019

Chemical Composition (%)

Standard Equivalent

ERDEMIR

C d(thickness, mm)

And

With

N(one)

CE(IIW) ⁽⁴⁾max. (%)

Quality No.

<16

16<d<40

40<d<100

d (mm)

Standard

Quality

max.

<30

30<d<40

40<d<100

IN 10025-2

S355JR+AR

3252(one)

0.24

1.60

0.035

0.55

0.012

0.45

0.47

For S275 and S355 gradesmax. Carbonequivalent (CEV) for %Si ≤ 0.040.02%, for %Si ≤ 0.250.01%can be increased.

Weight Chart

DIMENSIONS	1mt./Kg	DIMENSIONS	1mt./Kg
5x5	0.196	40x40	12,560
6x6	0.283	45x45	15,896
7x7	0.385	50x50	19,625
8x8	0.502	55x55	23,700
9x9	0.636	60x60	28,260
10x10	0.785	65x65	33,200
12x12	1,130	70x70	38,500
14x14	1,539	75x75	44,160
15x15	1,770	80x80	50,200
16x16	2,010	85x85	56,700
18x18	2,543	90x90	63,600
20x20	3,140	100x100	78,500
22x22	3,799	110x110	95,000
24x24	4,522	120x120	111,000
26x26	5,307	130x130	133,000
28x28	6,154	140x140	154,000
30x30	7,065	150x150	177,000
35x35	9,616	-	-

b	Unit weight	b	Unit weight	b	Unit weight
mm	kg/m	mm	kg/m	mm	kg/m
5x5	0,20	30x30	7,07	75x75	44,16
6x6	0,28	32x32	8,04	77x77	46,54
7x7	0,39	33x33	8,55	80x80	50,24
8x8	0,50	34x34	9,08	85x85	56,72
9x9	0,64	35x35	9,62	90x90	63,59
10x10	0,79	36x36	10,17	95x95	70,85
11x11	0,95	37x37	10,75	100x100	78,50
12x12	one,13	38x38	11th,34	105x105	86,55
13x13	one,33	39x39	11th,94	110x110	94,99
14x14	one,54	40x40	12,56	115x115	103,82
15x15	one,77	42 x42	13,85	120x 120	113,04
16x16	2,01	45x45	15,90	130x130	132,67
17x17	2,27	46x46	16,61	140 x 140	153,86
18x18	2,54	47x47	17,34	150x150	176,63
19x19	2,83	48x48	18,09	160 x 160	200,96
20x20	3,14	50x50	19,63	170 x 170	226,87
21x21	3,46	52x52	21,23	180x 180	254,34
22x22	3,80	55x55	23,75	190x 190	283,39
23x23	4,15	57x57	25,51	200x200	314,00
24x24	4,52	60x60	28,26	210x210	346,19
25x25	4,91	62x62	30,18	220x220	379,94
26x26	5,31	65x65	33,17	230x230	415,27
27x27	5,72	67x67	35,24	240x240	452,16
28x28	6,15	70x70	38,47	250x250	490,63
