Euro Quality : DX51D+Z - DX52D+Z - DX53D+Z - DX53D+Z - DX54D+Z - DX56D+Z - DX57D+Z

Erdemir Quality : 1311 – 1312 – 1313 – 1303 – 1314 – 1315 - 1317

Width : 804mm

Length : 1000 - 3200 mm

Wall Thickness : 0.30 - 0.70 mm

Storage Sheet

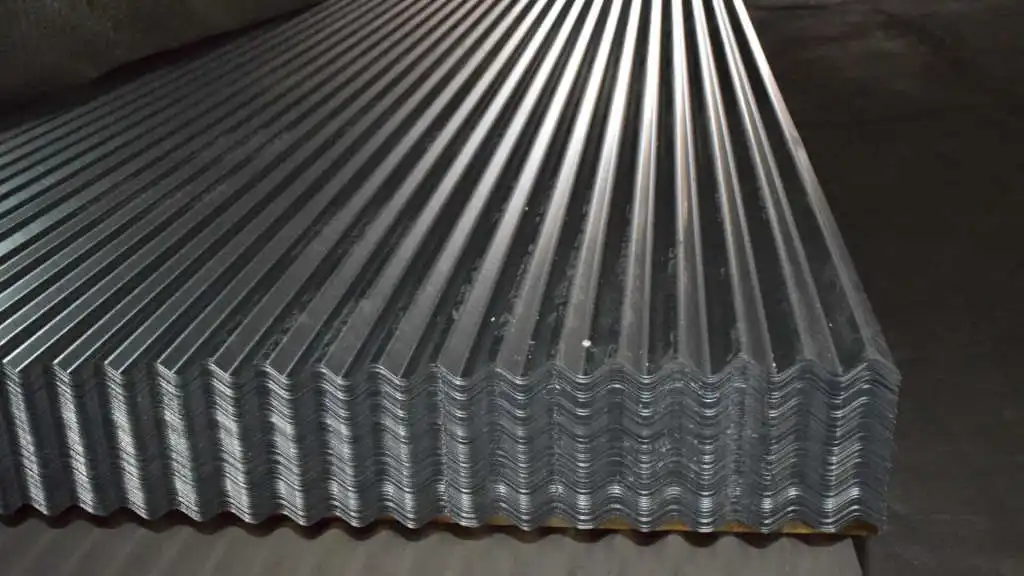

What is Roller Sheet?

Aluminumor paintedof productsroller shutteras it is formed. you wantAluminum plaqueblinds can be drawn from its dimensions.

  • BigIf the material is withdrawn from 1000 mm wide material, the useful area will be 800 mm.
  • BigIf the material is withdrawn from 1250 mm wide material, the useful area will be 950 mm.
  • Radius range3 cm (distance between two groove widths), Radius height can be adjusted between 10-20 mm.
  • Sheet Thickness: Min. 0,30 mm / Max. 0,70 mm
  • Sheet Length: Min. 1000 mm / Max. 3200 mm
  • Sheet Useful Area Width: 804 mm (Tolerance: + 25 mm, -15 mm)

Usage Areas

  • In shop and store buildings,
  • In the production of shutters and blinds,
  • It is used in decorative roof and facade coatings.
  • Zinc coating amount is in accordance with Turkish and World standards.

Quality

(EN 10327)

DX51 D+Z Painted Galvanized Sheet (top coat polyester paint over primer)

Chemical Composition (%)

Standard Equivalent

ERDEMIR

Quality No.

C max.

And

max.

Mn

max.

P max.

S max.

Of

max.

Standard

Quality

IN 10346

DX51D+Z

1311

0.18

0.50

1.20

0.12

0.045

0.30

IN 10346

DX52D+Z

1312

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

DX53D+Z

1313

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

DX53D+Z

1303

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

DX54D+Z

1314

0.12

0.50

0.60

0.10

0.045

0.30

IN 10346

IN 10346

DX56D+Z

DX57D+Z

1315

1317

0.12

0.12

0.50

0.50

0.60

0.60

0.10

0.10

0.045

0.045

0.30

0.30

Mechanical Properties

Standard Equivalent

ERDEMIR

Quality No.

Warranty Periods(6)

RandRp0.2/Rthe N/mm2 (kg/mm2)

Rm(one)N/mm2 (kg/mm2)

A80(2) (%)

min.

r90

min.

n90

min.

Mechanical

Values

Flow Trace(4)

Not occurring

Standard

Quality

IN 10346

DX51D+Z

1311

1 is

-

-

270-500 (27.6-51.0)

22

-

-

IN 10346

DX52D+Z

1312

1 is

-

140-300(3) (14.3-30.6)

270-420 (27.6-42.8)

26

-

-

IN 10346

DX53D+Z

1313

1 is

-

140-260 (14.3-26.5)

270-380 (27.6-38.7)

30

-

-

IN 10346

DX53D+Z

1303

1 is

-

140-260 (14.3-26.5)

270-380 (27.6-38.7)

30

-

-

IN 10346

DX54D+Z

1314

6 is

6 is

120-220 (12.2-22.4)

260-350

(26.5-35.7)

36

1.6(5)

0.18

IN 10346

DX56D+Z

1315

6 is

6 is

120-180 (12.2-18.4)

260-350 (26.5-35.7)

39

1.9(5)

0.21

IN 10346

DX57D+Z

1317

6 is

6 is

120-170 (12.2-17.3)

260-350 (26.5-35.7)

41

2.1(5)

0.22

Descriptions

  1. Tensile test values ​​are applied to “transverse” test specimens.
  2. “Min. % uzama” değerleri, kaplama dahil 0.50 mm < t < 0.70 mm kalınlık aralığında olan ürünler için 2 birim, 0.35 mm < t < 0.50 mm kalınlık aralığında olan ürünler için 4 birim, t<0.35mm olanlar için 7 birim azaltılır.
  3. Upper value of yield strength for surface quality A is 360MPawill be.
  4. The warranty period is applied to products requiring B and C surface quality.
  5. Kalınlığı 1.50<t<2.0mm olan ürünler için r90 değeri 0.2 birim azaltılır.
  6. The warranty periods specified in the table begin when the material is reported to be manufactured and ready for shipment.

Weight Chart

THICKNESS

 1M.Length Weight





mm

(kg/m)

 0,30x860x1000

 2.38

 0,35x860x1000

 2.53

 0,40x860x1000

 2.93

 0,45x860x1000

 3.34

 0,50x860x1000

 3.75
