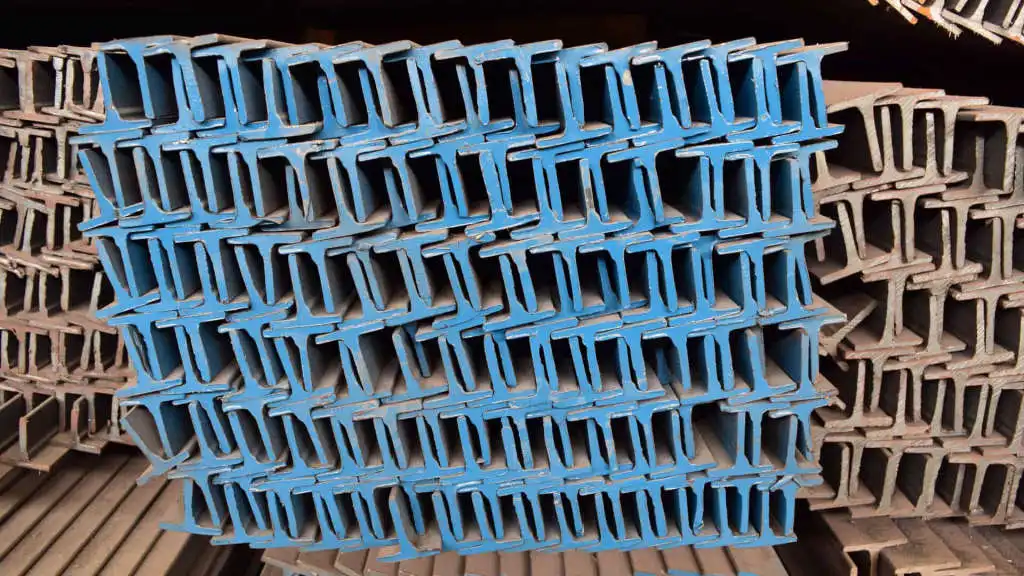

T Iron
Quality : S275JR - S355JR - S235JR
Standard : EN 10055 - EN 10163 - EN 10025 - ASTM A 36
Size : 20 - 140 mm.
H (Depth) : 20 - 140 mm
B ( Width ) : 20 - 140 mm
Body Thickness : 3.0 - 15.0 mm
T Iron
What is T Iron?
T profileironIt is a versatile and useful product. in different fieldssimplicityand provides convenience. It is generally used to provide connections between two different or two same floors.T profileironis preferred. It is also called transition profile in some areas. The areas where the most basic benefit is provided are heavy transportation areas.T profileironsget downupper partsextremely strong against stresses and pressureswhile; the vertical part has a strong feature against bending and cutting. They are common manufacturing products. In many different areas of the automotive industrysimplicityprovides. The most primary crew of trailers are body elements. Among the basic building materialsT profileironThey are known for being products that are found as structural carriers. taking its name from its formT profileirons, T beamAlso known as. Product use, which is the abandonment of building materialsto the supremacyvery important consideringlocated between the parts. Offered with durableT profileironIt is used in many areas due to its high strength.
- It is used very frequently in the construction industry.
- It is frequently used in entertainment and workplace areas, especially in airports, fairgrounds, shopping centers.
- Due to its structure, it is intended for construction sector employees.easeprovides.
- It is one of the strongest team members to be able to handle heavy loads.
- It has the feature of not concentrating the weight in the structures and making the structure more robust.
- It is inverted T light shape.
Where are the Usage Areas
T IronIn some areastransitionprofileAlso called. The areas where the most basic benefit is provided are heavy transportation areas.T profileironof theirwhile the upper parts are quite strong against stresses and pressures; the vertical part has a strong feature against bending and cutting.Commonly produced products. It provides convenience in many different areas of the automotive industry. One of the trailersbible are the body elements of the crew.
T profileiron pricesConsidering the advantages gained with the use of the product, it is expressed as quite economical. The product, which is used as a carrier in buildings, is also used for fixing the weight sections of elevators, machines and many other parts. weight hThe main reason why it is effective in lice is due to the fact that the product offers high strength.
Offering high strengthT profileironin from the usage areaIt draws attention as the superiority it offers in more use.T ironsIt is used in fence manufacturing, barrier manufacturing, machinery industry, agriculture industry, furniture and automotive industry. There is room for use in shelves, in the preparation of display furniture, in storage areas.T profileironYou need to pay attention to some details when purchasing
Quality
S235JR 5437 QUALITY MECHANICAL PROPERTIES
Mechanical Properties | ||||||||||||||||||
Standard Equivalent | ERDEMIR Quality No. | Rand(min) N/mm2 ( kg/mm2) d(thickness, mm) | Rm(one) N/mm2 ( kg/mm2) d(thickness, mm) | A (%) min. d(thickness, mm) | Coup(3) (Longitudinally) | |||||||||||||
A80 | A5 | |||||||||||||||||
<16 | >16 <40 | >40 <63 | >63 <80 | >80 <100 | <3 | >3 <100 | >1 <1.5 | >1.5 <2 | >2 <2.5 | >2.5 <3 | >3 <40 | >40 <63 | >63 <100 | hot. °C | KVc J(min.) | |||
Standard | Quality'81 | |||||||||||||||||
IN 10025-2 | S235JR+AR CTB | 5437 | 235 (24.0) | 225 (23.0) | 215 (21.9) | 215 (21.9) | 215 (21.9) | 360-510 (36.7-52.0) | 360-510 (36.7-52.0) | 16 | 17 | 18 | 19 | 24 | 23 | 22 | +20 | 272) |
CHEMICAL COMPOSITION OF S275JR 3244
Standard: EN 10025-2:2019
Chemical Composition (%) | |||||||||||||||
Standard Equivalent | ERDEMIR | C d(thickness, mm) | Mn | P | S | And | With | N(one) | CE(IIW) (4) max. (%) | ||||||
Quality No. | <16 | 16<d<40 | 40<d<100 | d (mm) | |||||||||||
Standard | Quality | max. | max. | max. | max. | max. | max. | max. | max. | max. | <30 | 30<d<40 | 40<d<100 | ||
IN 10025-2 | S275JR+AR | 3244(one) | 0.21 | 0.21 | 0.22 | 1:50 | 0.035 | 0.035 | - | 0.55 | 0.012 | 0.40 | 0.40 | 0.42 |
For S275 and S355 gradesmax. Carbonequivalent (CEV) for %Si ≤ 0.040.02%, for %Si ≤ 0.250.01%can be increased.
S355JR 3252 CHEMICAL COMPOSITION Standard: EN 10025-2:2019
Chemical Composition (%) | |||||||||||||||
Standard Equivalent | ERDEMIR | C d(thickness, mm) | Mn | P | S | And | With | N(one) | CE(IIW) (4) max. (%) | ||||||
Quality No. | <16 | 16<d<40 | 40<d<100 | d (mm) | |||||||||||
Standard | Quality | max. | max. | max. | max. | max. | max. | max. | max. | max. | <30 | 30<d<40 | 40<d<100 | ||
IN 10025-2 | S355JR+AR | 3252(one) | 0.24 | 0.24 | 0.24 | 1.60 | 0.035 | 0.035 | 0.55 | 0.55 | 0.012 | 0.45 | 0.47 | 0.47 |
For S275 and S355 gradesmax. Carbonequivalent (CEV) for %Si ≤ 0.040.02%, for %Si ≤ 0.250.01%can be increased.
Weight Chart
DIMENSIONS | 1mt./Kg. |
20x20x3 | 0.880 |
25x25x3 | 1,450 |
30x30x3 | 1,500 |
30x30x4 | 1,870 |
35x35x4 | 1,900 |
40x40x4 | 2,440 |
50x50x5 | 3,770 |
50x50x6 | 4,440 |
60x60x6 | 5,420 |
60x60x7 | 6,230 |
70x70x8 | 7,380 |
80x80x9 | 9,660 |
90x90x10 | 11,900 |
100x100x11 | 15,100 |
120x120x13 | 21,600 |
140x140x15 | 31,306 |
Section | Size mm | G Unit Weight kg/m | h Depth mm | b Width mm | Body Thickness mm | tfHead thickness mm | rInside Corner Radius mm | Single Profile Weight kg/12.1 m | 1 Ton Profile length m/ton |
T | 20 | 0,90 | 20 | 20 | 3,0 | 3,0 | 3,0 | 11th | 1149 |
T | 25 | one,30 | 25 | 25 | 3,5 | 3,5 | 3,5 | 15 | 787 |
T | 25 | one,61 | 25 | 25 | 4,5 | 4,5 | 4,5 | 19 | 621 |
T | 30 | one,76 | 30 | 30 | 4,0 | 4,0 | 4,0 | 21 | 568 |
T | 30 | 2,16 | 30 | 30 | 5,0 | 5,0 | 5,0 | 26 | 463 |
T | 35 | 2,31 | 35 | 35 | 4,5 | 4,5 | 4,5 | 28 | 433 |
T | 35 | 2,78 | 35 | 35 | 5,5 | 5,5 | 5,5 | 34 | 360 |
T | 40 | 2,94 | 40 | 40 | 5,0 | 5,0 | 5,0 | 36 | 340 |
T | 40 | 3,49 | 40 | 40 | 6,0 | 6,0 | 6,0 | 42 | 287 |
T | 45 | 4,26 | 45 | 45 | 6,5 | 6,5 | 6,5 | 52 | 235 |
T | 50 | 5,11th | 50 | 50 | 7,0 | 7,0 | 7,0 | 62 | 196 |
T | 60 | 7,03 | 60 | 60 | 8,0 | 8,0 | 8,0 | 85 | 142 |
T | 70 | 9,26 | 70 | 70 | 9,0 | 9,0 | 9,0 | 112 | 108 |
T | 80 | 11th,80 | 80 | 80 | 10,0 | 10,0 | 10,0 | 143 | 85 |
T | 90 | 13,40 | 90 | 90 | 10,0 | 10,0 | 10,0 | 162 | 75 |
T | one hundred | 16,40 | one hundred | one hundred | 11th,0 | 11th,0 | 11th,0 | 198 | 61 |
T | 120 | 23,20 | 120 | 120 | 13,0 | 13,0 | 13,0 | 281 | 43 |
T | 140 | 31,30 | 140 | 140 | 15,0 | 15,0 | 15,0 | 379 | 32 |
