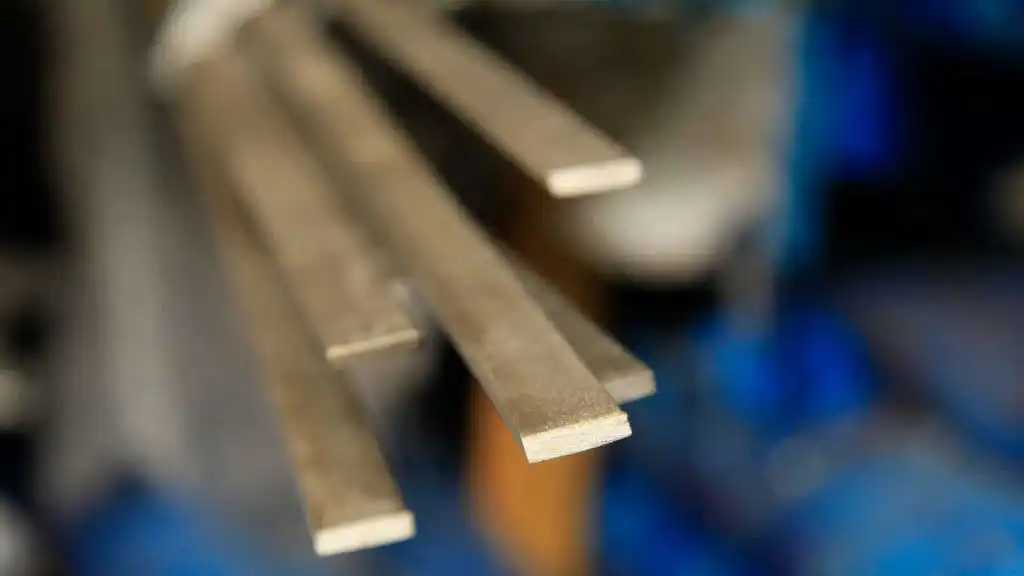

Wiping Iron
Euro Quality : S235JR - S275JR - S355JR
Erdemir Quality : 5437 - 3244 - 3252
Standard : EN 10058
Size : 16x3 - 100x5
Wipe Iron
What is Wiping Iron?
wiping ironis a flat iron andiron and SteelIt is one of the most preferred products in the industry. The reason why it is preferred so much is its usage network and very high quality, robust and long-lasting.
wipe ironsSince it is produced with a very high technology, its thickness and strength are always stable and therefore it is defined as the main carrier of the construction industry. This product, which can be used in every sector and at every stage, stands out with its durability, strength and long usage time.
Industryand is among the highly preferred durable materials in the construction industry. Thanks to its durable structureiron and SteelIt becomes one of the most produced supporting products in the industry.Flat and flat shapedThese resistant products promise long-lasting use in all areas where high strength is required. Robustness, longevity,chemical and physical resistanceIt becomes one of the main carrier materials that can be used safely under tons of load.hot rolledsteel is cut between 10 mm and 60 mm thicknesses. In accordance with world standards6 meters to 12 metersAvailable in lengths. However, these dimensions may vary according to the wishes of the users. It is produced in various sizes according to users' requests, application area dimensions and intended use.
Your wiping ironproductionhotrollingandcold rollingproduced by management. There is a cleaning phase before this process. All kinds of crusts and burrs in the raw materials are removed during the cleaning phase. Thus, the raw materialready for rollingis brought. It is also important to coat the material with a lubricant before rolling it.. It is then inserted into the production line and the belt completes the remaining operations.
Usage Areas
wipe ironsThey attract attention with their durability, strength and smoothness properties. In addition, it has a very wide usage area in many sectors.wiping ironi what's thattakes off.
wiping ironIt is a product that does not strain the budgets with its high durability and long usage time. Like thiswiping ironiYou can choose both in manufacturing, modification and production. In addition to the standards, in the dimensions you wantwiping ironBeing able to order also expands these usage areas.
wiping ironinusage areas are extremely common, but the most used area is the construction sector. First in the construction industrysteel constructionandIt is the main element and it is possible to use it as a basic material. In the automotive sector, wiping iron is preferred in the production of spare parts, construction machinery and agricultural vehicles. A qualitywiping ironbecomes functional in all sectors.
Quality
S235JR 5437 QUALITY MECHANICAL PROPERTIES
Mechanical Properties | ||||||||||||||||||
Standard Equivalent | ERDEMIR Quality No. | Rand(min) N/mm2 ( kg/mm2) d(thickness, mm) | Rm(one) N/mm2 ( kg/mm2) d(thickness, mm) | A (%) min. d(thickness, mm) | Coup(3) (Longitudinally) | |||||||||||||
A80 | A5 | |||||||||||||||||
<16 | >16 <40 | >40 <63 | >63 <80 | >80 <100 | <3 | >3 <100 | >1 <1.5 | >1.5 <2 | >2 <2.5 | >2.5 <3 | >3 <40 | >40 <63 | >63 <100 | hot. °C | KVc J(min.) | |||
Standard | Quality'81 | |||||||||||||||||
IN 10025-2 | S235JR+AR CTB | 5437 | 235 (24.0) | 225 (23.0) | 215 (21.9) | 215 (21.9) | 215 (21.9) | 360-510 (36.7-52.0) | 360-510 (36.7-52.0) | 16 | 17 | 18 | 19 | 24 | 23 | 22 | +20 | 272) |
S275JR 3244 CHEMICAL COMPOSITION Standard: EN 10025-2:2019
Chemical Composition (%) | |||||||||||||||
Standard Equivalent | ERDEMIR | C d(thickness, mm) | Mn | P | S | And | With | N(one) | CE(IIW) (4) max. (%) | ||||||
Quality No. | <16 | 16<d<40 | 40<d<100 | d (mm) | |||||||||||
Standard | Quality | max. | max. | max. | max. | max. | max. | max. | max. | max. | <30 | 30<d<40 | 40<d<100 | ||
IN 10025-2 | S275JR+AR | 3244(one) | 0.21 | 0.21 | 0.22 | 1:50 | 0.035 | 0.035 | - | 0.55 | 0.012 | 0.40 | 0.40 | 0.42 |
For S275 and S355 gradesmax. Carbonequivalent (CEV) for %Si ≤ 0.040.02%, for %Si ≤ 0.250.01%can be increased.
S355JR 3252 CHEMICAL COMPOSITIONStandard: EN 10025-2:2019
Chemical Composition (%) | |||||||||||||||
Standard Equivalent | ERDEMIR | C d(thickness, mm) | Mn | P | S | And | With | N(one) | CE(IIW) (4) max. (%) | ||||||
Quality No. | <16 | 16<d<40 | 40<d<100 | d (mm) | |||||||||||
Standard | Quality | max. | max. | max. | max. | max. | max. | max. | max. | max. | <30 | 30<d<40 | 40<d<100 | ||
IN 10025-2 | S355JR+AR | 3252(one) | 0.24 | 0.24 | 0.24 | 1.60 | 0.035 | 0.035 | 0.55 | 0.55 | 0.012 | 0.45 | 0.47 | 0.47 |
For S275 and S355 gradesmax. Carbonequivalent (CEV) for %Si ≤ 0.040.02%, for %Si ≤ 0.250.01%can be increased.
Weight Chart
DIMENSIONS | 1mt./Kg |
16x3 | 0.36 |
20x3 | 0.47 |
20x5 | 0.78 |
25x3 | 0.59 |
25x5 | 0.98 |
30x3 | 0.71 |
30x5 | 1.18 |
35x5 | 1.37 |
40x5 | 1.57 |
45x5 | 1.77 |
50x5 | 1.96 |
55x5 | 2.16 |
60x5 | 2.36 |
65x5 | 2.55 |
70x5 | 2.75 |
75x5 | 2.94 |
80x5 | 3.14 |
90x5 | 3,53 |
100x5 | 3.93 |
