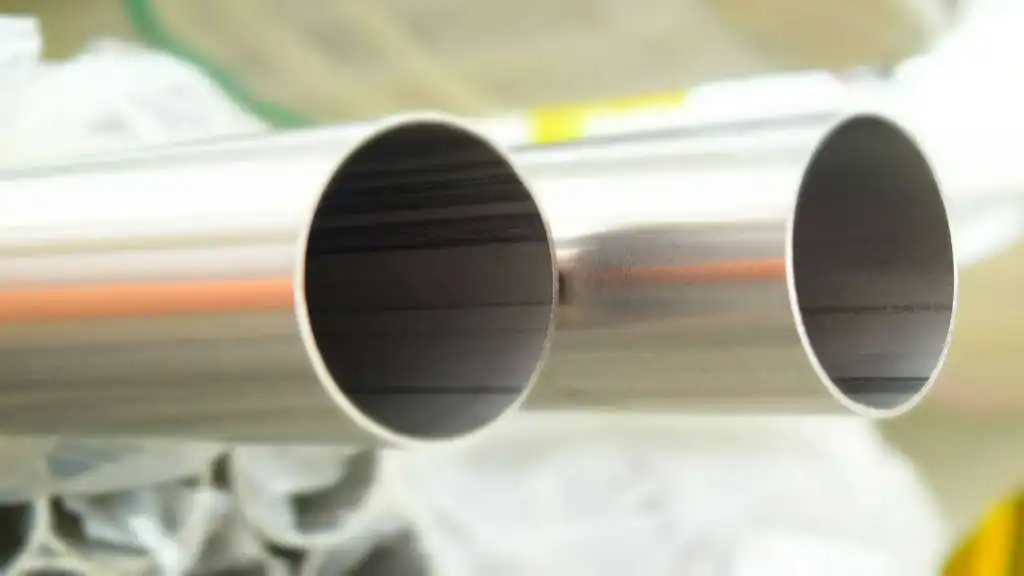

Stainless Pipe
Quality : 304 - 316 - 201 - 321 - 310
Diameter : 6 - 273 mm
Wall Thickness : 0.5 - 6 mm
Stainless Pipe
What is Stainless Pipe?
StainlesspipeIt is one of the materials preferred by most sectors today. One of the most asked questions,stainless pipesofwhere it is used.stainless pipes; It is used in the water system, heating system and waste water system of the houses. Having a shiny structure, the pipes are also aesthetic in appearance.stainless pipes, as the name suggeststhey do not rust.
stainless pipesThe main feature of s is hidden in its name. These pipes with bright design are clearlypthey don't lion. Since they are produced in stainless steel, they are preferred in most sectors today with peace of mind. Being resistant to heat and corrosion,stainless pipesIIt is one of the main features that makes it preferable.
Stainless steel welded pipesIts production is carried out by rolling the heated billet.welded pipesraw product of roll (coil) are known as semi-finished sheets. These rolls, which are cut to size of the pipes, are ready for use after going through most procedures.Stainless steel drawing pipes, steel welded pipesThe main feature that distinguishes it from theStainless steel drawn pipesIt is produced as resistant to pressure and cast as one piece. Steel drawn pipes, which are poured into containers while hot, are produced in a round shape. In order for the pipes to take the form of a round form, some materials are used. After the pipes have been shapedstainlesssteel pipesleft to cool. Cleaning the pipes is done by the pickling procedure. After this stage, the pipes are ready for use.
Stainless Types
-According to Production Typesstainless pipes
-Stainless Pipe According to the Nature of the Welding Process,
-Stainless Pipe According to Their Surfaces,
-Stainless Steel Draw Tube,
-Stainless Steel Welded Pipe,
-Stainless Pipe Produced by TIG Welding,
-Stainless Pipe Produced by Hf Welding,
-Stainless Pipe Produced by Laser Welding,
-Matt Surface Stainless Tube,
-SatinSurface Stainless Tube,
-PolisailStainless Pipecan be sorted in the format.
Usage Areas
Widely used day by daystainless pipesMost of them are made of durable material.advantagesintogetherbrings.CorrosionThese pipes, which are produced as resistant to heat and heat, provide a long-lasting use with their non-rusting structures.It is possible. Stainless pipes, which are frequently preferred due to these features, are also extremely resistant to pressure. Due to these features, stainless pipes are mostly used in industrial facilities. Petroleum refineries and petrochemical industriesof stainless pipesIt is among the most preferred areas.stainless pipes; It is preferred in many areas such as heating installation, drinking water networks, food industry, waste water installation, fire extinguishing systems.
Stainless Pipes According to Production Types
stainless pipesSince the usage areas of it are very wide, it can be used in extremely different types.stainless pipeit is necessary to produce.stainless pipesThe biggest distinguishingfrom the elementsOne is the types of production.stainless pipesby type of production 2'they are leaving. This distinction Stainless Steel Draw TubeandStainless Steel Welded Pipe it is done.
Stainless Steel Draw Tubes
Stainless drawn pipesIt is generally used where there is high pressure. The reason of thisdrawing pipescompressive strength ofwelded pipesThis is due to the fact that it is higher than The main reason for the high compressive strengthiifpipingThis is due to the fact that it was poured in one piece.drawing pipesFirstly, it is poured into various molds in hot condition to give a round form. The pipes, which take a round form, are brought to the inner diameter with the mandrels that are passed through them according to their measurements. In order to be able to fix the inner diameter dimension exactly, the measurement is fixed in millimeters by passing the mandrel several times. Then, in order to bring the outer diameter to the desired size, it is passed between the cylinders and the outer diameter dimension is fully formed. After these procedures, the pipe is left to cool. After the pipe cools down, it is acidified and cleaned to remove the stains left on the cylinder. Cleaning procedurereputationand the pipe is then ready for use.
Stainless Welded Pipes
Stainless drawn pipescompressive strength is lower. The reason for this is the use of resources in their formation. All of the pipes used for decorative purposes are from welded pipe group pipes. Welded pipes are generally used in low pressure lines and for decorative purposes.welded pipesReason for preferencedrawing pipesIts price is more reasonable compared tostainless sheetsby cutting the tape in certain sizesStainless welded pipeconstruction begins. Then, the cut bands pass through the wheel-shaped molds and start to gain form. After passing through many molds, the sheet entering the machine in the form of a band reaches the round form. The sheets that reach the round form are welded by a machine as they move on the band and take the form of a pipe. Afterwards, the pipes are annealed by entering the annealing. The reason for annealing is to make the stainless pipes easier to process and to increase their resistance against flexing. After the annealing procedure is overstainless pipesIt is cut to the desired dimensions, and finally, the welding places in order to clean the burrs caused by welding. Make it ready for use by sanding using an emery stone.rs.
Stainless Pipes According to Welding Quality
stainless pipeAnother criterion used in the classification of varieties is the type of source. These criteriadrawing pipesjust because there is no sourcewelded pipesusing for. There are 3 main types of resources. These are TIG (Tungsten Inert Gas) welding, HF (high frequency) welding and laser welding, respectively. Weld quality z on the pipesits valueis displayed. Zvalueone'The closer to e, the higher the weld strength. Zof value1 is theoreticallydrawing pipesIt has shown to have the same robustness as Types of stainless pipes according to their qualities
- TIG Welding
- Hf Source
- Laser Source can be sorted in the format.
TIG welding (Tungsten Inert Gas)
It is made using a non-melting tungsten electrode.stainless pipesup when moving in a band on the line orThanks to a torc tungsten electrode, the parts are fused by melting the part. Contact with air while welding causes deterioration of the weld. In order to prevent this, argon gas is given to eliminate the errors caused by the atmosphere. After the welding procedure is over, the trace formed on the outside of the pipes due to welding is cleaned by grinding andstainless pipesis made ready for use. Tig welding is much more robust than hf welding. It is more stable than the hf weld, but the procedure time is extremely long compared to the hf weld.
Hf source (high frequency)
It is a welding method by applying high frequency energy to the surfaces to be joined, thanks to the electrode. It is done with a technique similar to tig welding. However, the welding technique using a higher energy progresses much faster than tig welding. Hf weldedstainless pipesIn addition, after the welding procedure, burrs in the form of clusters form in the pipe. To remove these burrs, a spindle with diamonds is inserted into the pipes and burrs are removed. The pipes are cleaned and made ready for use.Hf pipesIt is generally used for decorative purposes as it has less head strength than tig welded pipes.Hf pipesProduction rates are extremely high compared to tig welded pipes.
laser source
The laser beam is applied pointwise to the surface to be joined and the desired point is combined. Laser welding can do a much finer workmanship than tig and hf welding. As a result of welding with laser weldingstainless pipesThe remaining traces on the surface are cleaned by grinding and the pipes are made ready for use. Many advantages of laser welding over tig and hf weldingmosthas. Laser welding is as fast as hf welding, although it is so fast, a solid welding can be made at least as tig welding and it works much more meticulously.structureavailable.
Stainless Pipes According to Their Surfaces
stainless pipesAnother distinction made is based on their surfaces.stainless pipesthey are generally separated according to 3 different types of surfaces. In this separation, the surface brightness of the pipes is used as a criterion.
These surfaces are matte,satinandpolishedis named. According to their surfacestainless pipes
Matt Surface Stainless Tube
SatinSurface Stainless Tube
PolisailStainless Pipe
1) Matt Surfacestainless pipes
When the pipes come out of production, their surfaces are matte. The weld surfaces of these pipes are grinded and put into use, called matte pipes.
2) Satinsurfacedstainless pipes
Satinsurfacestainless pipespipe after productionsatinon the machinesatinsubject to the procedurethey are held. SatinThe procedure is a process in which the pipe passes between the grinding wheels in the form of wheels.is the procedure. 320 to this proceduregridemery stone is used. The grinding wheel used in the processto the sensitivity gridname is given.GridThe larger the size, the brighter the pipe will be.
3) polished stainless pipes
After pipe productionsatinsubjected to the procedure. After this procedure, 600gridThe pipes, which are polished with an emery stone, are then filled with felts and a gloss-enhancing paste.againcleared. After the cleaning procedure is over, the pipe surface has reached 600 grit, that is, the mirror surface.polishedIt has become a stainless pipe.
In this articlestainless pipesWe talked about what kind of stages the pipe went through until it became a pipe and according to which criteria it was separated. to the best of our abilitystainless pipesabout everydetailWe tried to explain and erase the question of why Stainless from your mind a little more. You can also find the table about stainless pipe sizes below.
Quality
Its qualities are: 304 quality stainless pipe, 316 quality stainless pipe, 316 titanium quality stainless pipe, 201 quality stainless pipe, 321 quality stainless pipe, 310 quality stainless pipe. Another issue to be considered is the welding method of stainless pipes. The type of stainless pipe that should be used industrially should be TIG welding, but HF welding should be used for decoration purposes or in places that do not require any pressure or pressure.
304 (1.4301) Quality Stainless Steel
Corrosion Resistance: | This quality, which is quite sufficient for daily use and standard productions,corrosiveIt is not preferred because it will rust in environments. In more demanding conditions, 316, 316L, 316Ti or duplex (1.4462) grade stainless steel should be preferred instead of 304 grade stainless steel. |
Mechanical Properties: | This stainless steel quality, which is often sufficient in terms of mechanical strength, is not preferred where high yield and rupture strength is required. When mechanical properties come to the fore, the materialin structureconsidering, |
Tendency to Forge: | This quality material has a standard malleability. MetaltattooextremeIt should not be preferred in densely populated areas. |
Sourcefeasibility: | Plain 304 quality stainless steel is an ideal material for places where there is no excessive welding. In places where the weld is more intense, the lower carbon (L=low carbon) 304L quality material should be preferred. |
Machinability: | This material, which is not bad in terms of machinability, is not preferred in places where processing is intense. 304 quality stainless steel is less preferred, especially in lathes and machining centers, as it wraps chips. In places where this type of process is intense, 303 quality stainless steel, which is the automatic version of 304, should be preferred. |
304 (1.4301) KChemical Composition
Chemical Composition | |||||||
Quality | C | Mn | P | S | And | Cr | In |
304 (1.4301) | 0.08%max | 2.0%max | 0.045%max | 0.03%max | 0.75%max | 18-20% | 8-10% |
Mechanical Properties at Room Temperature | |
Quality | 304 (1.4301) X5CrNi18-10 |
breaking strength | 515 - 720 MPa |
yield strength, (0.2%) | 210 MPa (min) |
Hardness, Rockwell (HB) | 201 |
Physical Properties at Room Temperature | |
Features | Values |
Density (Specific gravity) | 8000 kg/m³ |
Melting temperature | 1450°C |
Modulus of elasticity (Modulus of Elasticity) | 193 GPa |
amount of electrical resistance | 0.072x10^-6 Ωm |
heat permeability | 17.2W/m.K |
Summary of Quality Characteristics | |
304 stainless is numbered as 1.4301 quality stainless according to the EN standard. | |
304 quality stainless is also ENto the standardaccording to X5CrNi18-10as wellis named. | |
This stainless qualityestheniticIt belongs to the stainless steel class. | |
Materials of this stainless steel grade can be well formed and welded well. | |
Stainless steels of this quality do not attract magnets and have a high corrosion resistance. | |
316 (1.4401) QUALITY STAINLESS STEEL
Chemical Composition | |||||||||
Quality | C | Mn | P | S | And | Cr | In | Mo | |
316 (1.4401) | 0.08max | 2 | 0.045 | 0.030 | one | Between 16.0-18.0 | between 10.0 and 14 | 2.0-3.0 to | |
Mechanical Properties at Room Temperature | |||
Quality | 316 (1.4401) X5CrNiMo17-12-2 | 316L (1.4404) | 316Ti (1.4571) |
breaking strength | 515 MPa | 485 MPa | 485 MPa |
yield strength, (0.2%) | 205 MPa | 170 MPa | 170 MPa |
Hardness, Rockwell (B) | 95 | 95 | - |
Summary of Quality Characteristics |
316 stainless is numbered as 1.4401 quality stainless according to the EN standard. |
316 quality stainless is also ENto the standardaccording to X5CrNiMo17-12-2as wellis named. |
316 and 316L quality stainless 304 quality in the worldwith stainlessIt is one of the most widely used stainless steel grades. |
This stainless qualityestheniticIt belongs to the stainless steel class. |
Materials of this stainless steel grade can be well formed and welded well. |
Stainless steels of this quality do not attract magnets and have a high corrosion resistance. |
Corrosion resistance of 316 grade stainless steel, 304 gradestainlessbetter than. |
General features | Explanation |
Corrosion Resistance: | The corrosion resistance of this material is quite good. In harsher environments, 316Ti or duplex (1.4462) quality material should be preferred. |
Mechanical Properties: | 316 quality material shows mechanical properties similar to 304 quality material. For higher strength, 431, duplex (1.4462) or 630 (1.4542 PH17.4) can be preferred. |
Tendency to Forge: | This grade of stainless steel has a good malleability tendency. |
Sourcefeasibility: | this qualityof stainlesssourcefeasibilityis good. In environments with more welding, 316L or 316Ti quality stainless should be preferred. |
Machinability: | In environments where corrosion resistance is insignificant, 303 or 430F quality stainless steel products may be preferred. |
321 (1.4541) Grade Stainless Steel
Chemical Composition | ||||||||||
Quality | C | Mn | And | P | S | Cr | In | N | Of | Co |
321 (1.4541) | 0.08%max | 2.0%max | 1.0%max | 0.04%max | ~0.03% | 17-19% | 9-12% | 0.10%max | 0.70%max | ~0.20% |
Mechanical Properties at Room Temperature | |
Quality | 321 (1.4541) X6CrNiTi18-10 |
breaking strength | 515 to 700 MPA |
yield strength, (0.2%) | Min 205 MPa |
Hardness (HRC) | Max 22 HRC veya <22 HRC |
Physical Properties at Room Temperature | |
Features | Values |
Density (Specific gravity) | 8030 kg/m³ |
Melting temperature | 1455°C |
Modulus of elasticity (Modulus of Elasticity) | 193 GPa |
amount of electrical resistance | 0.072x10^-6 Ωm |
heat permeability | 16.3W/m.K |
Summary of Quality Characteristics |
321 stainless is numbered as 1.4541 quality stainless according to the EN standard. |
321 quality stainless also according to EN standard X6CrNiTi18-10as wellis named. |
This stainless qualityestheniticIt belongs to the stainless steel class. |
Stainless steels of this quality do not attract magnets and have a high corrosion resistance. |
321 quality stainless material can work at temperatures up to about 800 degrees. |
The most important point where this stainless steel quality, whose internal structure is similar to 304 quality, differs from 304 is the existing titanium in its content. Titanium material both in terms of corrosionas well asadds resistance in terms of temperature |
321 stainless steel is not suitable for extremely high temperatures and at very high temperatures it would be better to use stainless steel grades such as 310 or 310s. 310 and 310s stainless steel gradesEuropeare available from origin and are much more resistant materials than their counterparts. |
321 Quality Stainless Steel Alternatives | |
QUALITY | In which situations can this quality be preferred instead of 321 quality stainless? |
316Ti | Stainless steel grades 321 and 316Ti are similar to each other. X6CrNiTi18-10 to 1.4541 grade (ie 321) and X6CrMoTi17-12-2 1.4571(ie 316Ti) show similarities as can be seen in terms of their chemical expansions. 316Ti material is more suitable for places where higher corrosion resistance is desired. The most important content difference between 316Ti and 321 is ~2%-% of 316Ti (1.4571) quality material.2.5is the molybdenum element.MoThis element, indicated by , increases the cost of the material, but it does not rust.in resistorincreases at the same rate. More costly but better corrosion resistanceas desiredwhen 316T quality material can be preferred instead of 321 quality and both stainless steelin qualityAvailable in a wide variety, all of European origin. |
310 / 310s | 1.4845 as wellThe so-called 310 stainless material can work even at approximately 1100 degrees. The maximum operating temperature of 321 quality materials is known as 800 degrees and it is not recommended to use 321 quality materials for temperatures above 800 degrees. If it is used above 321 800 degrees, it will melt very quickly and the structure of the material will deteriorate. Therefore, even though it is more expensive in terms of cost, 310 quality is 321 for very high temperatures.stainlessis much more suitable. 310 quality stainless material is available in diameters of six millimeters to one hundred millimeters and is one of the 310 stainless materials that can withstand heat for the longest time in the world. |
Corrosion Resistance: | 321 stainless steel is similar to 304 quality stainless material in terms of its structure, but the existingmax 0.7%This stainless material has a good resistance to corrosion thanks to its titanium ratio. Stainless steel grade 321, ie 1.4541, which is not recommended for extremely corrosive environments, is suitable for many environments in daily life. It is recommended to use 310 or 310s stainless steel grades for harsher and higher temperature environments. All of the existing 321 stainless materials are of European origin and it is confirmed by our manufacturer friends that these 321 stainless steels are more efficient compared to their counterparts. |
Mechanical Properties: | This stainless steel quality, which has an average strength in terms of mechanical properties, does not have very high mechanical values. The other most widely used in the world in terms of mechanical propertiesthey encourage321 grade stainless steel, which is similar to stainless steel grades, has a mechanical resistance almost equivalent to 304 and 316L grades. |
Tendency to Forge: | 321 stainless material is suitable for forging at medium-low level, but if it is necessary to forge 1.4541 quality stainless material, it is calculated that it is more appropriate to do it between 1075 and 1125 degrees. Forging in colder and hotter moments may cause the material to deteriorate. |
Weldability: | 321, 1.4541, which is a quality that can be considered suitable for welding, is similar to 316Ti (1.4571) stainless material, especially in terms of welding. In case it is desired to weld the existing 321 stainless materials, it recommends the use of the following quality electrodes as the electrode preference. Electrode grades: E 347, ER 347Si, ER 308L or ER 308LSI |
Machinability: | 1.4541 is not suitable for environments where machining is extremely intense, such as 303 and 430F, but 321 stainless materials go through many processes after production. All of these processes increase the machinability level of the material. In addition, the titanium element, which is in the content of 21 stainless materials, is much more homogeneous in the material compared to other similar ones, and the homogeneous distribution of titanium is an important factor that makes it easier to process. |
310 (1.4845) Stainless Steel Grade
General features | Explanation |
Corrosion Resistance: | The material has a very good corrosion resistance even at temperatures above 1000 degrees. The maximum use temperature of the material is 1100 degrees. |
Mechanical Properties: | The material can maintain its average mechanical properties even at high temperatures. |
Tendency to Forge: | This material can be forged to a certain extent, but it would not be right to choose it for parts that will change shape by forging. |
Weldability: | The weldability of the material is good. Especially 310 quality materials in our company have a better weldability than standard 310 grades due to their low carbon content. |
Machinability: | The material is specially softened so that it can be processed well, and the 310 quality materials in our company can be processed more easily than their counterparts. |
This stainless steel grade is used quite frequently in the chemical industry, the machinery industry. In addition to these, it is used in various apparatus and sets in the glass and glass manufacturing sector.
310 stainless steel is frequently used in high temperature furnaces, mines, furnaces and boilers. Another area where 310 stainless steel is used is Aluminum andbronzeare patterns.
In short, 310 (1.4845) stainless steel is a high temperature and a goodcorrosiveIt can be used almost anywhere where resistance is required.
310 stainless steelCorrosion Resistance
We can summarize the resistance of 310 stainless steel to temperatures in different environments in continuous use as follows.
-In Oxidation Atmosphere: ~1100°C
-Sulfur Oxidation: ~1000°C
-Cementation Reduction: ~1000°C
- Sulfur Reduction: ~750°C
Note: 1100°C under any condition using 310 quality materialsof the not to passrequired. 1100°C is the last limit of this material and if possible the last limitout of reachIt is recommended that the material work at temperatures. The temperature resistance of the material depends on the environment it is in and the treatment on the surface of the material.variabilitycan show.
Chemical Composition | ||||||||
Quality | C | Mn | And | P | S | Cr | In | Mo |
310 (1.4845) | 0.08% max | 2.0% max | 0.75% max | 0.045% max | 0.03% max | 25% | 20.5% | 0.75% max |
Mechanical Properties at Room Temperature | |
Quality | 310 (1.4845) X8CrNi25-21 |
breaking strength | 500 - 900 MPa |
yield strength, (0.2%) | 210 MPa (min) |
Hardness, Rockwell (HB) | 192 max |
Physical Properties at Room Temperature | |
Features | Values |
Density (Specific gravity) | 7900kg/m³ |
Melting temperature | 1450°C |
Modulus of elasticity (Modulus of Elasticity) | 200GPa |
amount of electrical resistance | 0.072x10^-6 Ωm |
Heat permeability (at 100°C) | 14.2W/m.K |
Heat permeability (at 500°C) | 18.5W/m.K |
Summary of Quality Characteristics |
310 stainless is numbered as 1.4845 quality stainless according to EN standard. |
310 quality stainless also according to EN standard X8CrNi25-21as wellis named. |
This stainless steel grade is the most common stainless steel grade used at high temperatures. |
Average of 310 quality materials in our company0.060%C has the amount of carbon and 310, 310S and 310H materials are allin threethe amount of carbon it should contain. |
in our companyUgitech1.4845 (310) quality materials produced by the factory have a good corrosion resistance even at temperatures of 1100°C. |
Stainless steels of this quality do not attract magnets and have very good corrosion resistance. |
